Foreword: In the industrial field, the environment is harsh and complex, and the stability and efficiency of network connection is crucial. Unmanaged industrial switch module has become the right hand of industrial Ethernet communication with its fearlessness of harsh environment, excellent anti-interference and super stability, which provides solid support for the development of various industries.

November 13, 2024, YINUOLINK Switch Module Series launches a variety of ultra-mini industrial-grade unmanaged Ethernet switch modules. Its excellent performance and compact and flexible embedded design provide the perfect solution for network connectivity in diverse scenarios.

Multi-port design for worry-free connectivity

Mini 5 ports 1000M (YN-IES10501-A) and 100M (YN-IES10501) and 8 ports 1000M (YN-IES10801-A) and 100M (YN-IES10801) 4 types of industrial grade switches to meet the needs of different scenarios for the connection of multiple devices, such as in the field of industry, can be connected to multiple sensors, controllers and industrial cameras to realize efficient data transmission and cooperative work;In the security system, it can connect cameras, video recorders and other devices together to ensure stable transmission of surveillance images;In the new energy field, it provides reliable network connection for various monitoring devices and control systems, etc.

Fully compatible, plug and play

It fully supports IEEE 802.3, 802.3i, 802.3u, 802.3x and other standards, of which IEEE 802.3x flow control is a strong guarantee for reliable data transmission. Meanwhile, with 100/1000M adaptive rate, full-duplex/half-duplex mode and other significant features. Not only can it be compatible with all kinds of network devices following the corresponding standards, guaranteeing interoperability in a variety of network environments, but also significantly improve transmission efficiency and avoid data conflicts.

And all ports support Auto-MDI/MDIX adaptive connectivity, which automatically eliminates the need for crossover cables, eliminating the need to pick a cable type, and truly realizing plug-and-play without configuration, making connectivity easier and more efficient, and providing more possibilities for network layout.

Powerful hardware configuration, multiple protection

Adopting strict industrial-grade design and manufacturing standards, it is carefully configured with industrial high standard components such as overcurrent fuse, TVS anti-overvoltage protection, positive and negative power supply access, industrial crystal oscillator, ESD static protection, lightning tube, high efficiency heat sink and high current unibody inductors. Meanwhile, it adopts TG170 chemical nickel gold plate, which has high efficiency heat dissipation, high corrosion resistance, antioxidant performance, and better electrical performance, and greatly improves the anti-corrosion performance of the product.

These industrial configurations make the product not only to achieve ultra-long trouble-free operation, but also greatly enhance the service life of the product, thus strongly ensuring that the product can operate stably in a variety of harsh industrial environments, providing a solid and reliable protection for industrial production and other fields.

Excellent protection, ensuring stable operation without worries

Adopt high standard electromagnetic anti-interference protection design and high protection level EMC design. Not only with lightning surge and electrostatic full protection, of which the electrostatic protection capacity of up to 8KV, surge protection for the differential mode of 2KV, common mode up to 4KV. And has passed the CE, RoHS strict certification, its EMC radiation margin is higher than 5dB, after strict durability testing, to ensure a long service life, thus effectively reducing equipment maintenance and replacement costs.Whether in the complex and changing industrial environment, or in harsh conditions of various types of harsh electromagnetic interference environment, are able to cope freely, and strongly ensure the safe and stable operation of equipment.

Superior Capacity, High Efficiency Transmission

It is worth mentioning that a variety of switches cover 1Gbps, 1.6Gbps, 10Gbps and 16Gbps switching capacity, which provides abundant choices for users with different needs.Whether it's basic connectivity for a small network or a large industrial scenario with extremely high requirements for data transfer speeds, these switches can handle it with ease.Among them, YN-IES10801-A eight-port Gigabit switch module's 16Gbps ultra-high switching capacity stands out among similar products, which can easily cope with complex and changing industrial environments as well as professional fields with extremely demanding requirements on network performance.

In addition, the support of 16KB jumbo frame transmission can effectively reduce CPU utilization and significantly improve transmission efficiency, which helps network resources to achieve rational allocation and efficient use, and further improves the overall performance and efficiency of network operation.

Compact and flexible, adapting to multiple scenarios

Exquisite and compact appearance, whether in the compact industrial robot control cabinet, or in the narrow fuselage of the drone, or in the limited installation space of industrial computers, automation equipment, etc., it can be easily embedded, never take up too much space, adapting to a variety of different application scenarios in the flexible mobility and deployment, to meet a variety of complex environments under the network requirements.

Fully tested and rock solid

In order to ensure the reliability of the product under wide voltage and wide temperature environments, and to guarantee its normal operation in all kinds of complex electrical environments. In order to provide comprehensive and detailed test data to support the quality and performance of the products, so as to further optimize the design and performance of the products, and significantly enhance the competitiveness and adaptability of the products in the market, YINUOLINK has carried out a series of rigorous and comprehensive test work.

In terms of voltage testing, hundreds of power failure restart tests were conducted under different voltage widths, such as 9V, 12V, 24V, 48V, etc., which highly simulate voltage fluctuations in actual industrial environments, thus strictly checking the stability and resilience of the switch.

In the temperature test section, under the environment of -35℃ to 75℃, all aspects of the product were tested for 48 hours of working efficiency, storage stability and cyclic durability, and many other related tests. From low to high temperatures, each temperature point is a litmus test for product quality.

Not only that, in order to more realistically simulate the actual application scenarios may encounter various types of sudden power failure, and then test the product in different network environments after the power failure restart performance. At the same time, 8 pieces of products to be connected in series, respectively, access to the real network and computer network, the implementation of up to hundreds of times of power failure restart test.

Through these comprehensive tests, the product's performance has been fully verified. It not only supports 9-48V wide voltage input, but also has positive and negative connection protection and over-current and over-voltage protection, which can be adapted to a variety of industrial power supplies, showing a strong adaptability, and is able to cut through all kinds of complex power environments. At the same time, whether it is extremely cold winter outdoor industrial places, or high temperature industrial production workshop and other harsh environments, it can be stable operation.

Strict certification and quality assurance

The road of research and development of scientific and technological products is never full of thorns. Behind every seemingly simple scientific and technological achievement, the blood and sweat of countless personnel are condensed.

To integrate powerful functions in such a compact size, and at the same time to ensure that the switch is characterized by anti-static, anti-surge, anti-lightning and anti-pulse, high-temperature, low-temperature and corrosion-resistant. Ensuring a high degree of stability and reliability in environments ranging from -35°C to 75°C, while meeting the complex connectivity needs of different scenarios, is undoubtedly a test. From the initial design idea to the final product molding landing, each link is full of challenges.

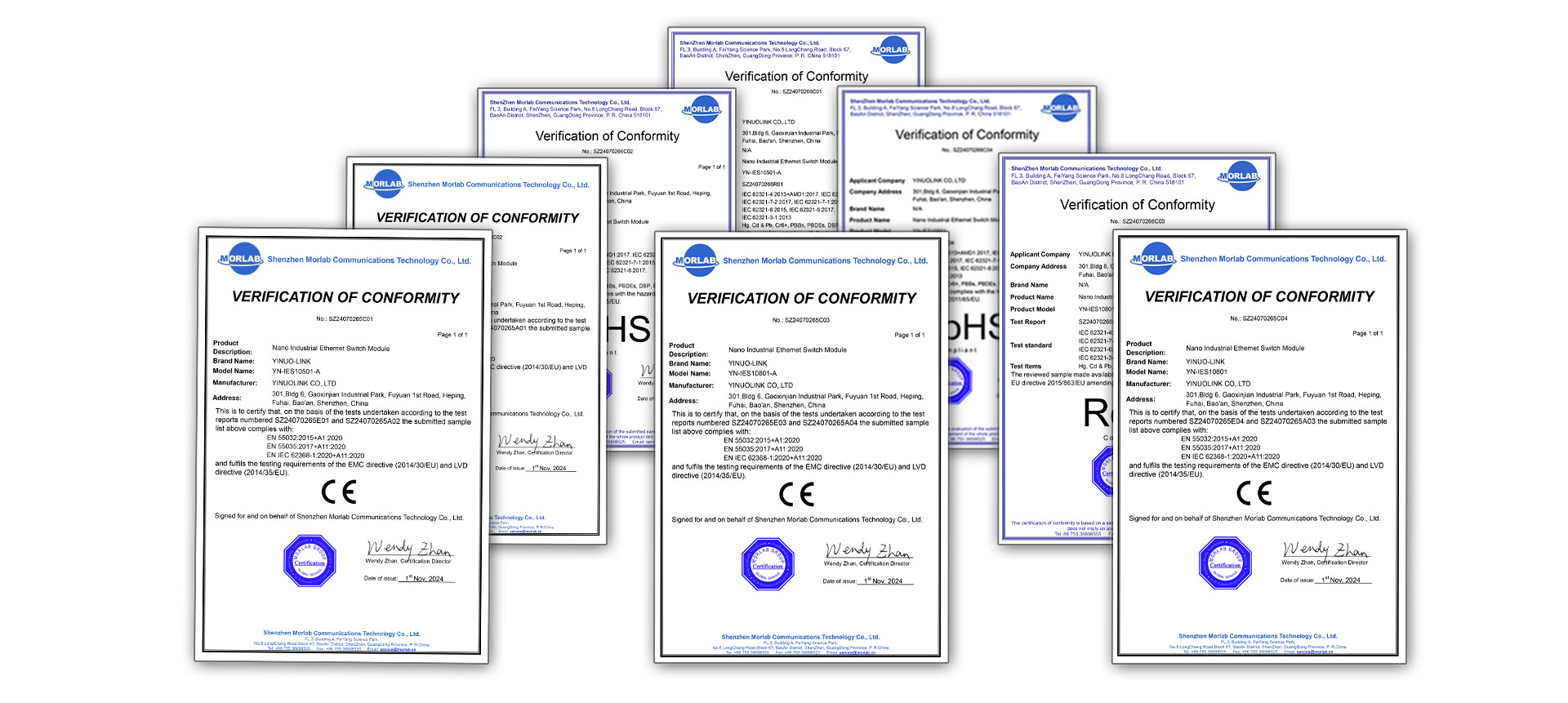

The R&D team, with the active cooperation of personnel from other related departments of the company and the full support of our partners, conducts all-around testing and optimization of the products with the help of advanced technology and professional knowledge from the top laboratories in China. After many material adjustments and improved test environments, all 4 types of Ethernet switch modules have successfully passed the CE and ROHS certifications. These certifications not only highly recognize the quality of the products, but also YINUOLINK's solemn commitment to the users and the best reward for the hard work of the R&D team. Whether in terms of electromagnetic compatibility, safety or environmental protection, it meets international standards and provides users with reliable protection.

The pursuit of excellence never stops

Despite the remarkable achievements of the current products, YINUOLINK knows that the development of technology never ends. In the process of product development, we also realize that it is not perfect, such as some of the existing products in extreme environments, product performance needs to be further optimized, in the compatibility of special equipment is also yet to be improved. At the same time, in order to meet the diversified application needs of different users in different scenarios, YINUOLINK will devote itself to the research and development of various types of switch modules, such as 10-port to 24-port industrial grade and intrinsically safe switches, in order to meet the diversified application needs of different users in different scenarios. We will carry out in-depth optimization from hardware performance, software features, stability, security and other dimensions. And advanced technology and high quality materials are used to ensure that the Ethernet switch module can operate stably in complex and harsh industrial environments as well as coal mine environments with special safety requirements. Thus providing more reliable and efficient network communication solutions for related industries. In the process, we will strictly follow the industry standards and safety norms, fully incorporate market feedback and cutting-edge technology trends, and carefully create quality products that meet user expectations and industry needs.

In the wave of technological development, YINUOLINK's pursuit of product quality is all-encompassing and multi-dimensional. From product design and development to manufacturing, and then to the strict testing and certification process, every step of the process unites YINUOLINK's dedication and perseverance to quality.

YINUOLINK will always be adhering to the “product is king, quality first” central concept, with unswerving determination to improve the stability and reliability of the product. Guided by the needs of customers, constantly innovating and breaking through to expand the application fields of our products. Provide users with more high-quality and efficient network connectivity solutions to help the development of industrial intelligence to new heights.

The future is promising. In the ocean of science and technology, YINUOLINK will continue to ride the waves, climb the peak, and write a more brilliant chapter for the future of network connectivity. Let's work hand in hand, walk with quality, and open a new era of more convenient and efficient network connection under the lead of science and technology. We look forward to your meeting us on alibaba.com, 1688.com, tao.com and other e-commerce platforms to create a bright future together.
