YN-IR20501 5 Port Gigabit Multi mode High Power AX1800 PoE Module

Wi-Fi Module

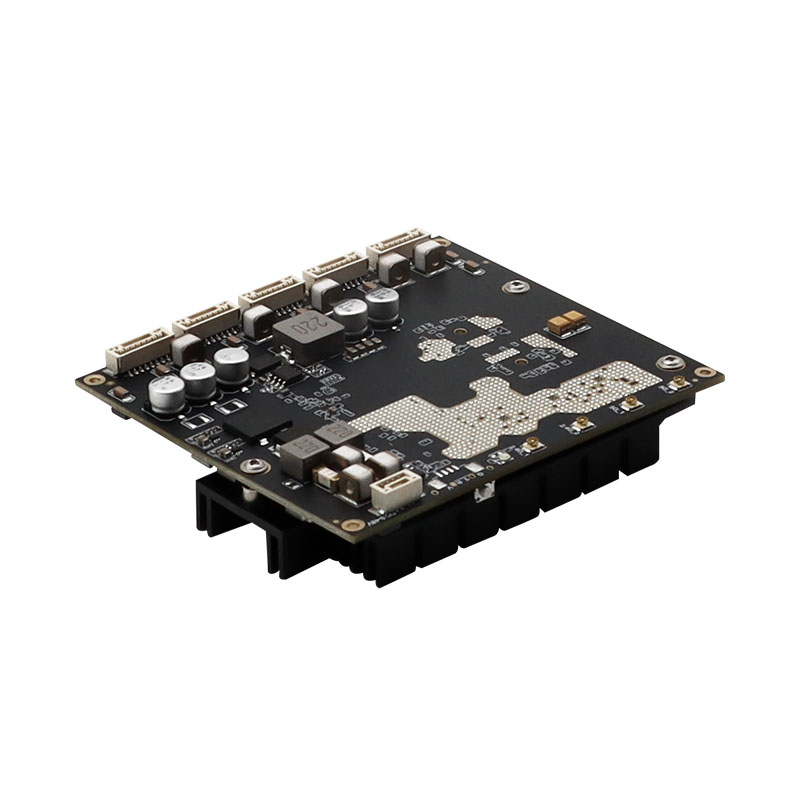

YN-IR20501 5 Port Gigabit Multi mode High Power AX1800 PoE Module

· IEEEE 802.3x Flow Control Provides Reliable Data Transmission

· Compact and super mini design.

· Automatic: MDI/MDIX Eliminates Need for Crossover Cables.

· Auto-negotiation: guarantees maximum speed on each port.

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex.

· PoE complies with the IEEE 802.3af/at standards. The power supply per port can reach 30W, and the total PoE output power of the whole machine can reach 120W.

· Lightning surge machine static full protection; static support 8KV, surge differential mode 1KV, common mode 2KV.

· Power supply support positive and negative access protection.

· Provides five 10/100/1000M adaptive ethernet locking socket.

· Industrial-grade operating temperature: -30℃~75℃.

· Support reverse protection, short circuit overcurrent protection, and surge protection, to ensure uninterrupted work of the device.

· High EMC protection level, can work in various harsh environments.

· Small size（89×479）、better adapted to industrial environments.

· Multiple working modes: Access point, wireless router, client, repeater, bridge, WISP client.

Services

Overview
Specifications

Industrial

5 Port 10/100/1000Mbps

AX1800

Multi mode High Power PoE Module

MODEL: YN-IR20501

Small High Single Port Multi- Selected

Embedded Power 30W Power mode Components

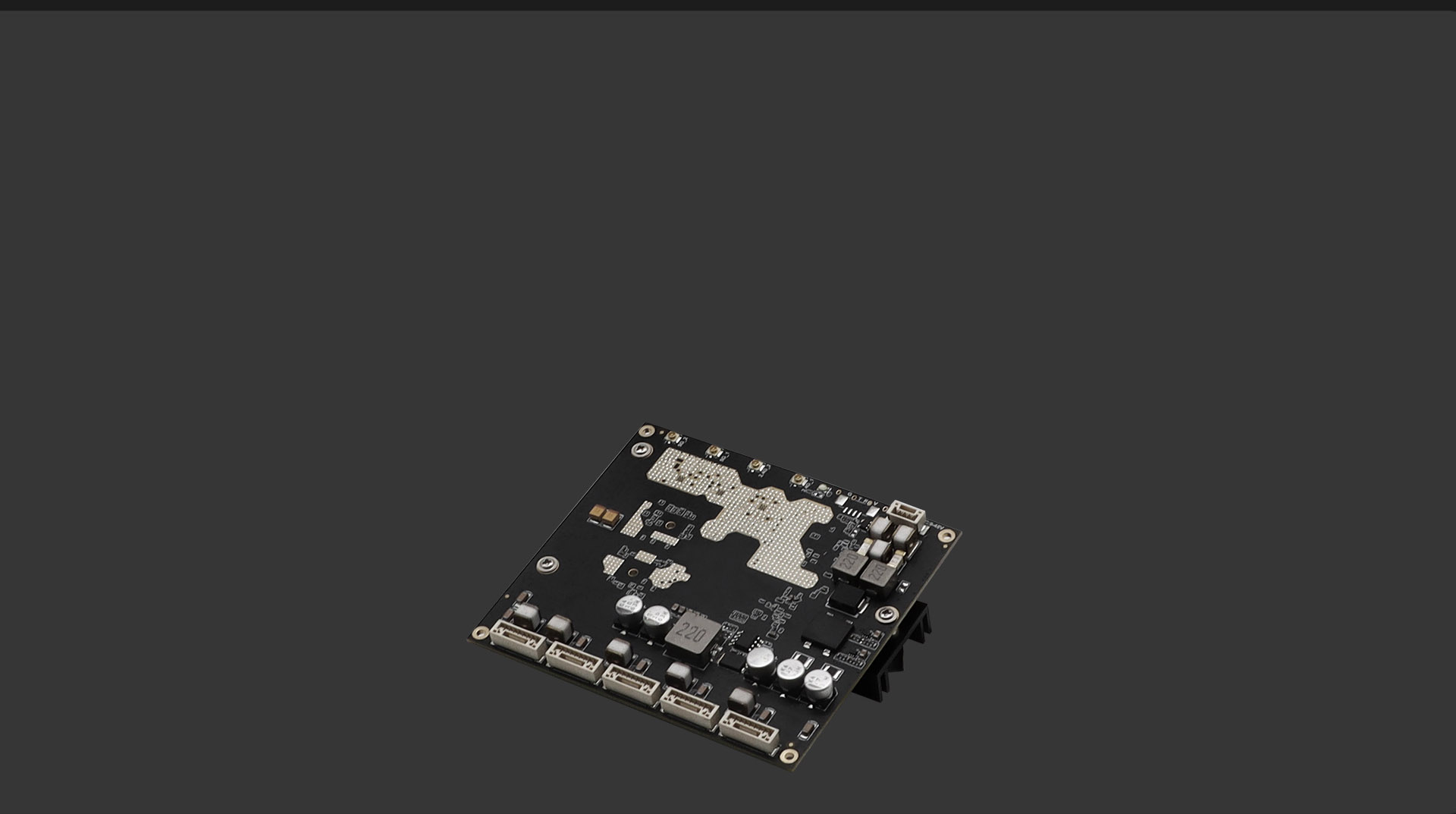

Compact and flexible embedded design

Five 1000M Adaptive Ethernet locking cradles are provided, and since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use. Supports a variety of connectivity options, including Wi-Fi 2.4GHz (574Mbps) and 5GHz (1201Mbps), and wired access, which can meet users' connectivity needs for different devices.

Supports a wide voltage input of 9~48V, adapting to various industrial power supplies. Reverse connection protection, short-circuit over-current protection, surge protection, to protect the equipment uninterrupted work.

High Power Wi-Fi6 FEM

External high power Wi-Fi6 FEM for stronger and more stable wireless penetration.

WiFi ranges up to 50 to 100 square feet.

PoE Power Supply

Strictly adhering to the IEEE 802.3 af/at standard, the single port power supply can reach up to 30W, and the whole PoE output power can reach up to 120W, which conforms to the PSE standard and fully guarantees the power supply demand of each port.

The PD port can provide 48~57V receiving power.

6 working modes

Whether you need a private Wi-Fi network or something to enhance your Wi-Fi, this device has a model for you.

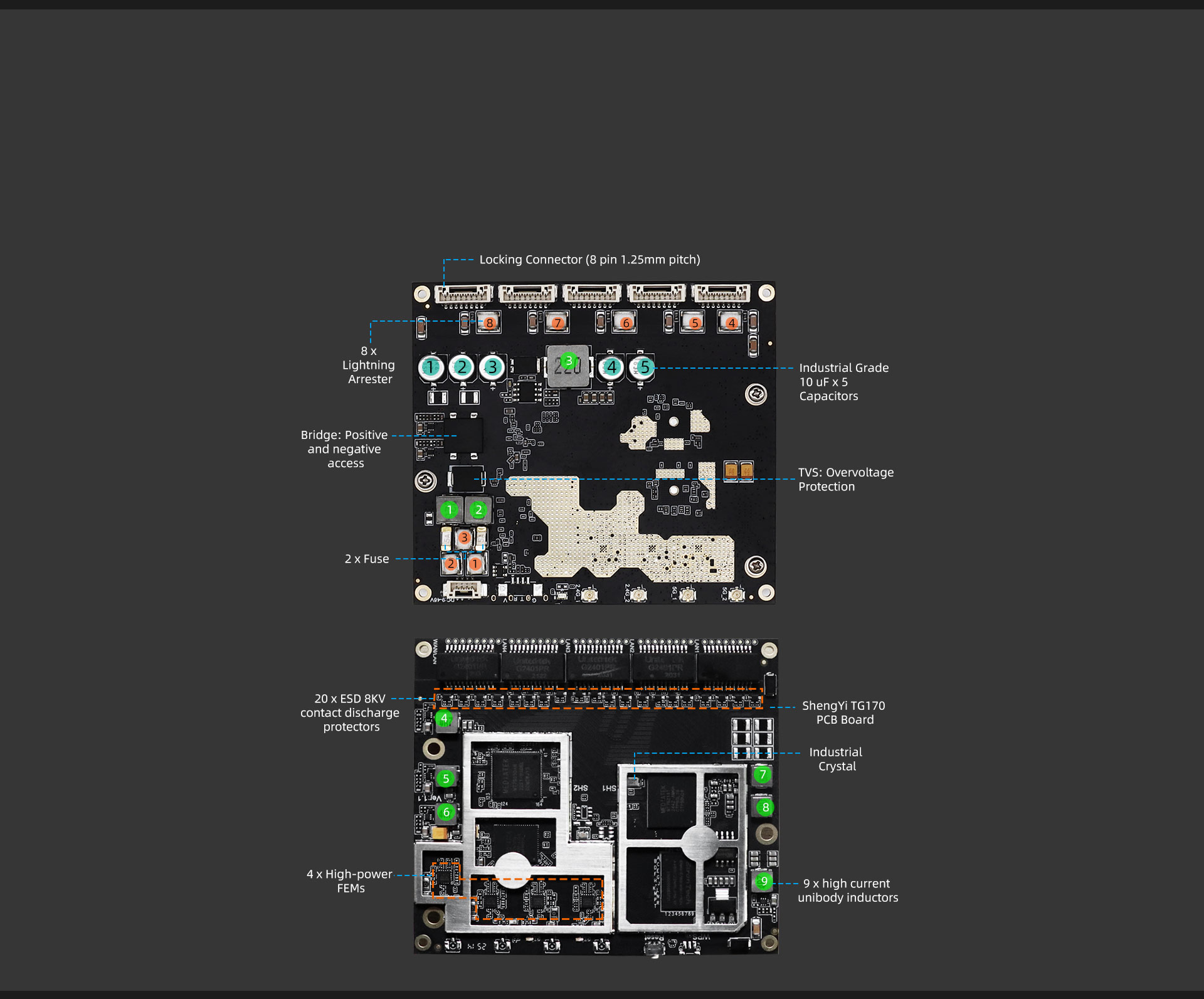

Selected Industrial Grade Devices

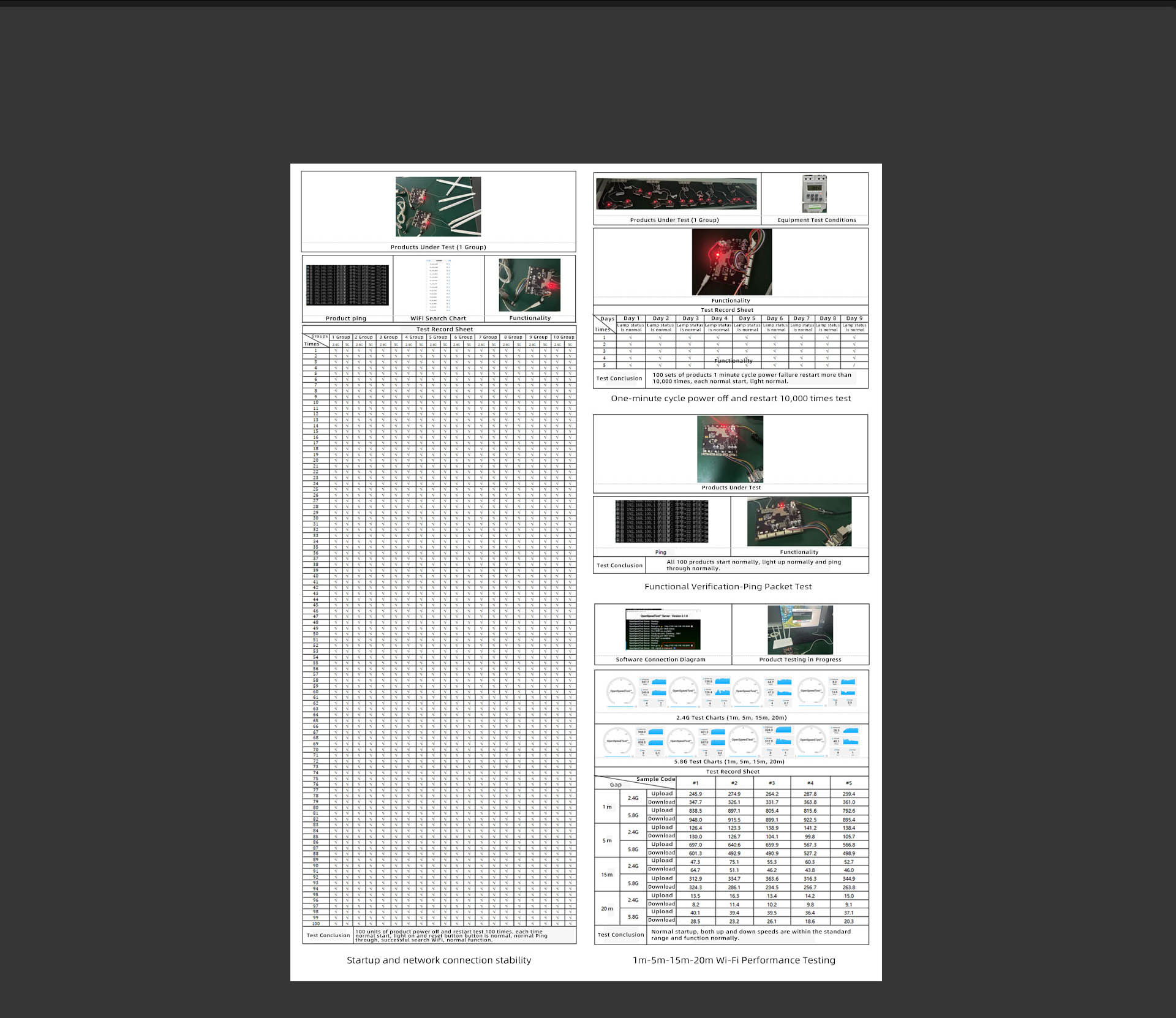

High-standard industrial-grade devices, adapting to various harsh electromagnetic interference environments such as electric power and industrial plants. Undergoes rigorous durability testing for long service life, reducing equipment maintenance and replacement costs.

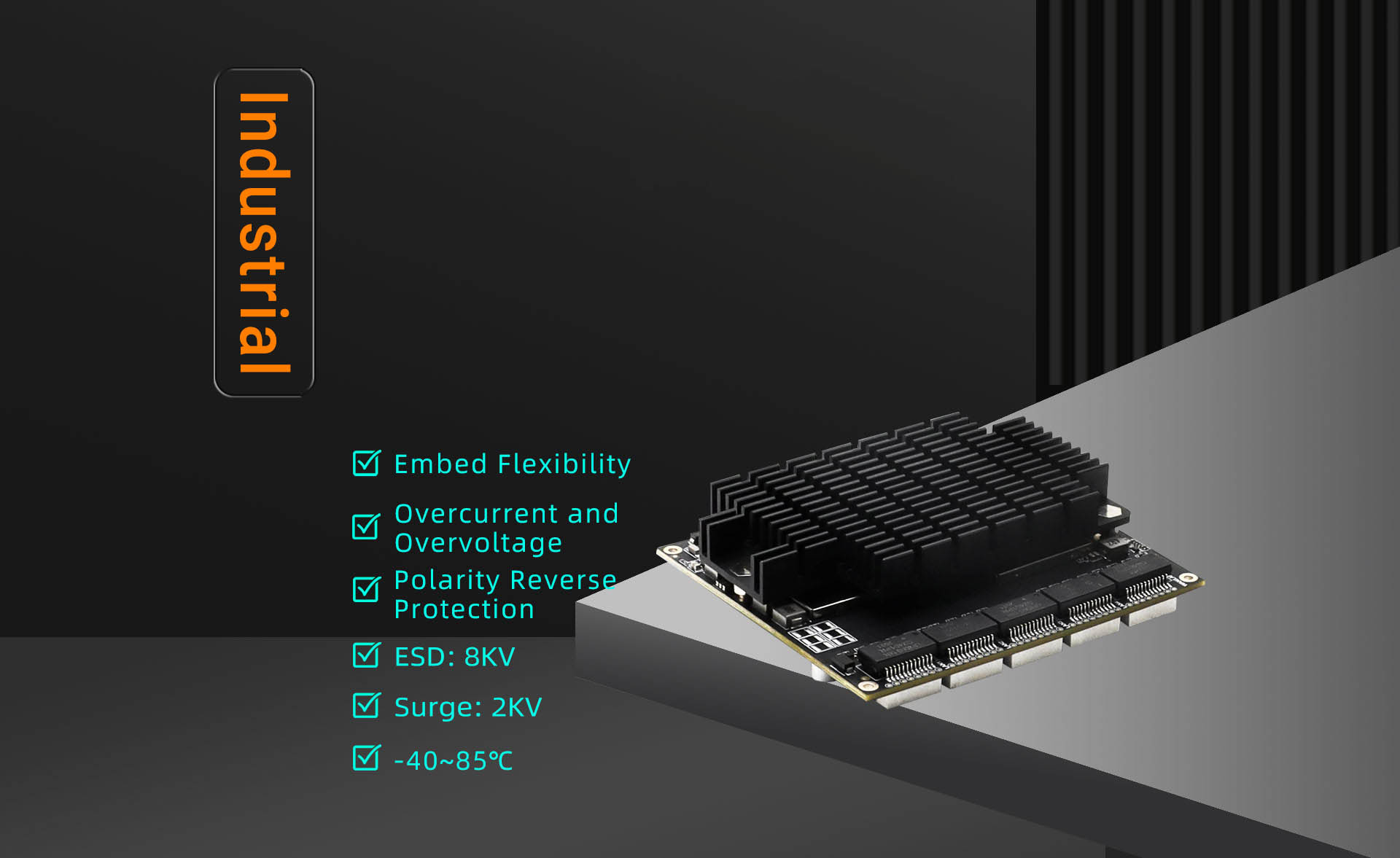

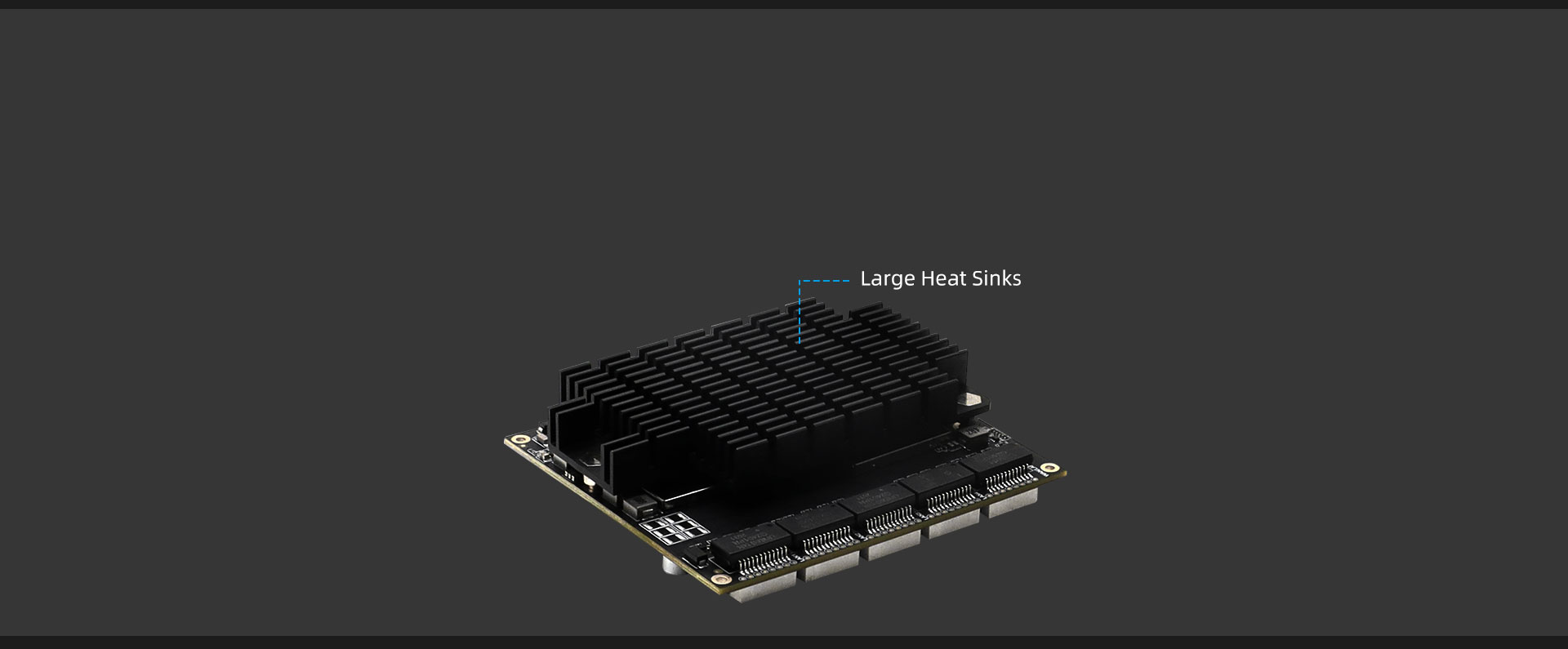

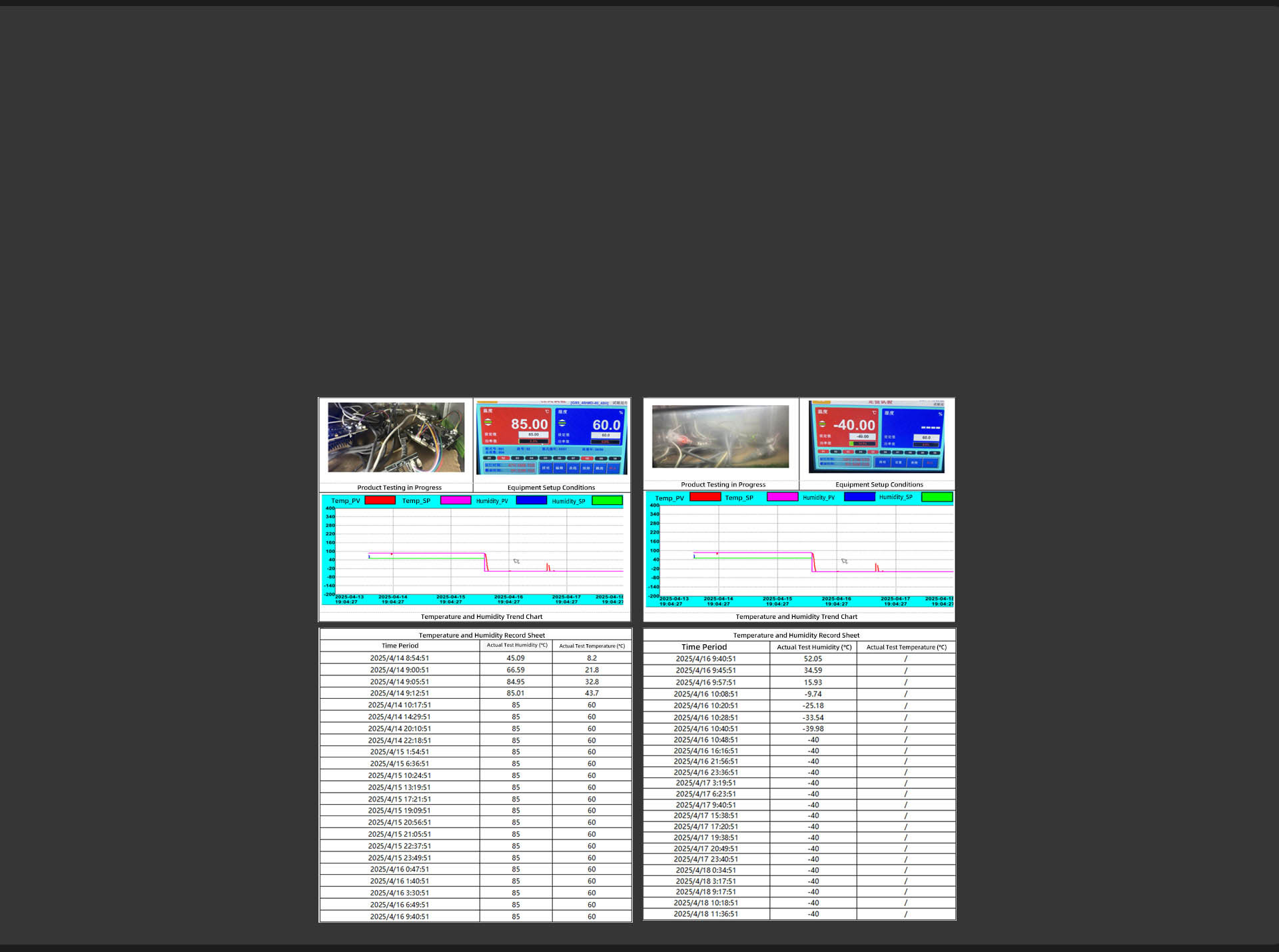

Designed for industrial environments

This is a 5-port Gigabit multi-mode High Power Poe module designed for industrial environments. Strictly designed in accordance with the operating temperature of -30℃~75℃, selected industrial-grade devices and natural heat dissipation method are adopted to ensure the stable operation of the equipment for a long time in this temperature range and satisfy various kinds of harsh environments.

YN-IR20501 5 Port Gigabit Multi mode High Power AX1800 PoE Module

Typical Application Scenarios

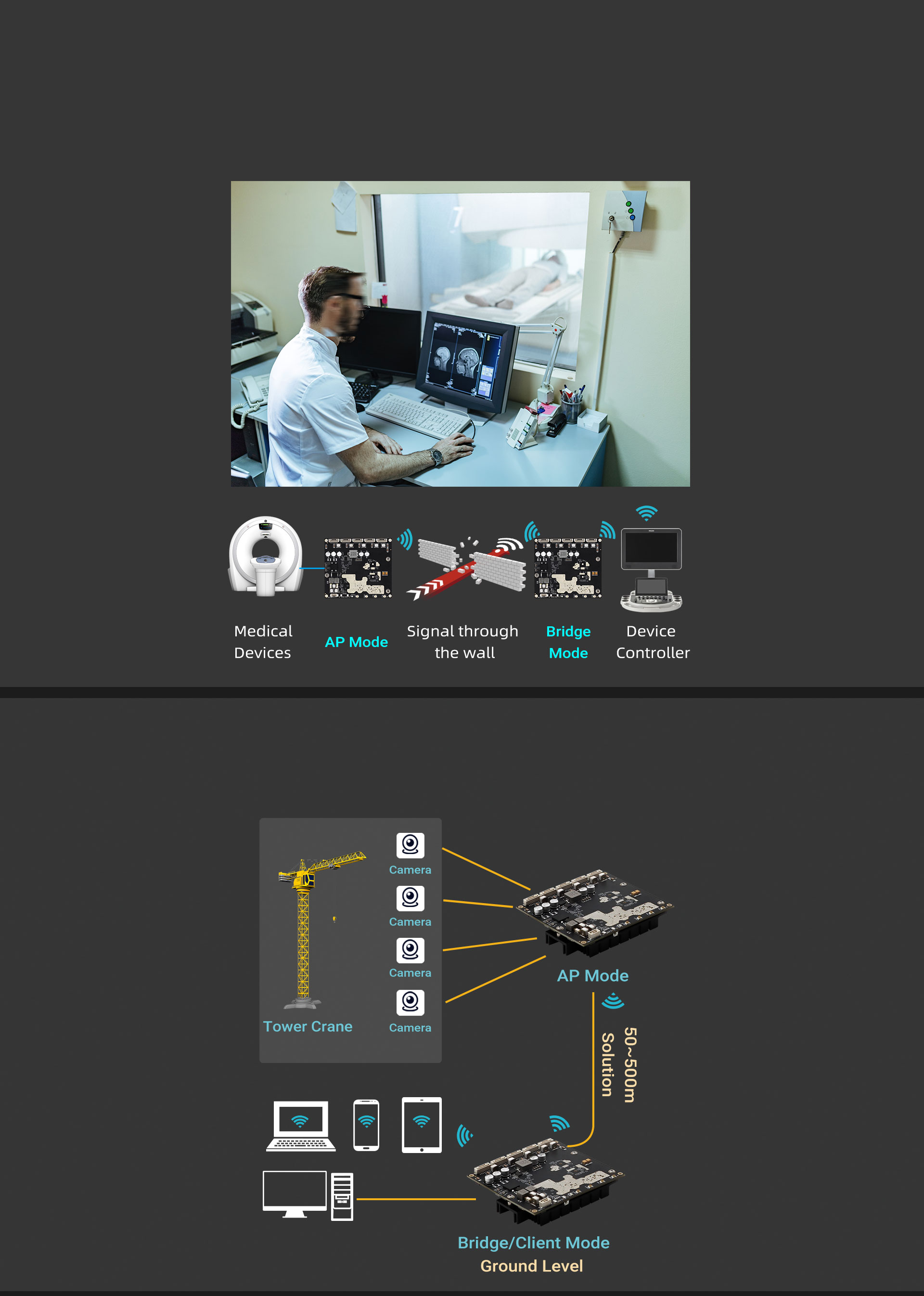

Compact and flexible embedded design, widely used in a variety of application scenarios, Such as: Mine Robot, UAV, industrial robot arm, self-service machine, Automobile Chassis Inspection Instrument, Industrial Electronic Scale, Medical devices, Superstore, industrial security, Device-integrated wifi network, etc.

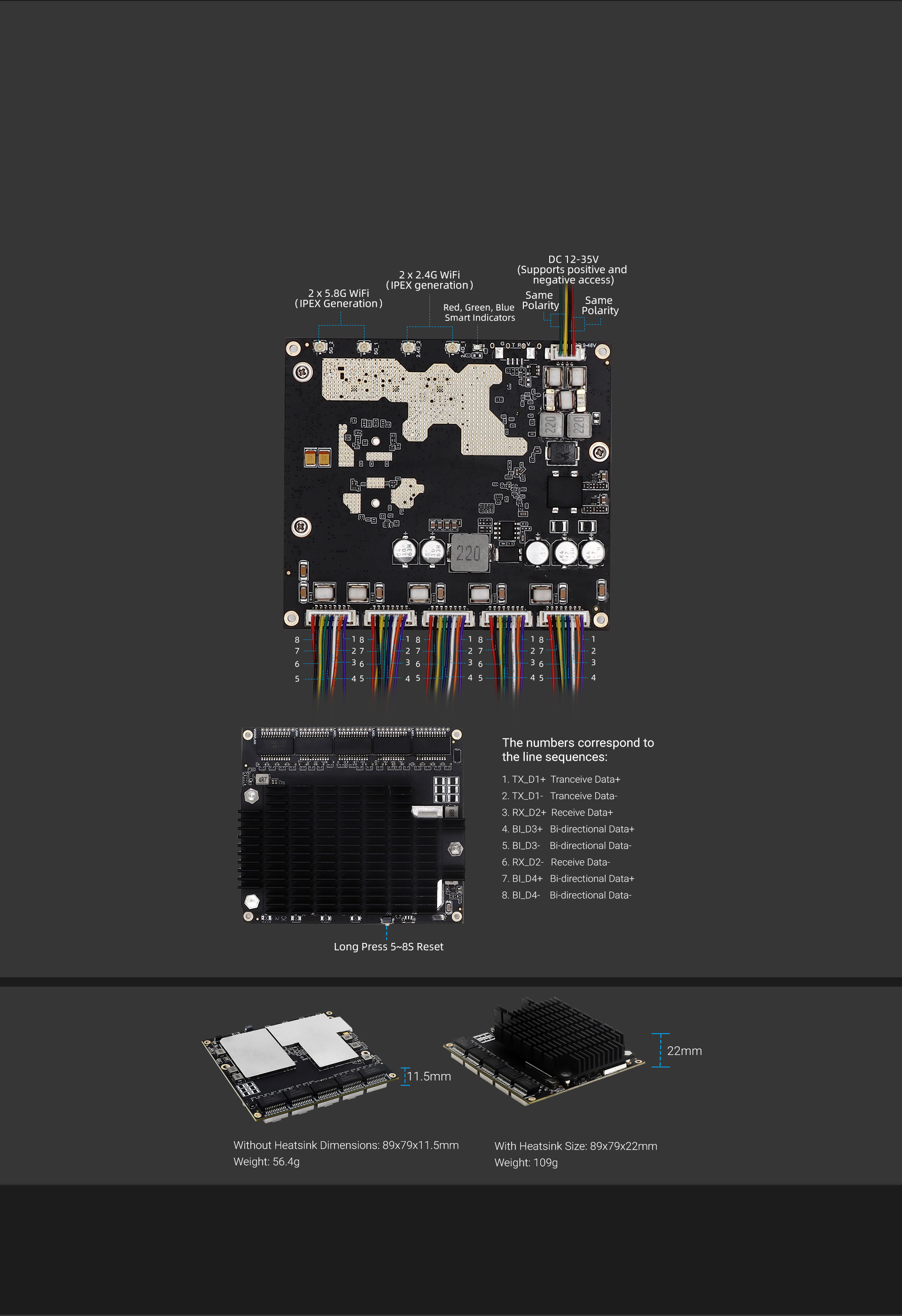

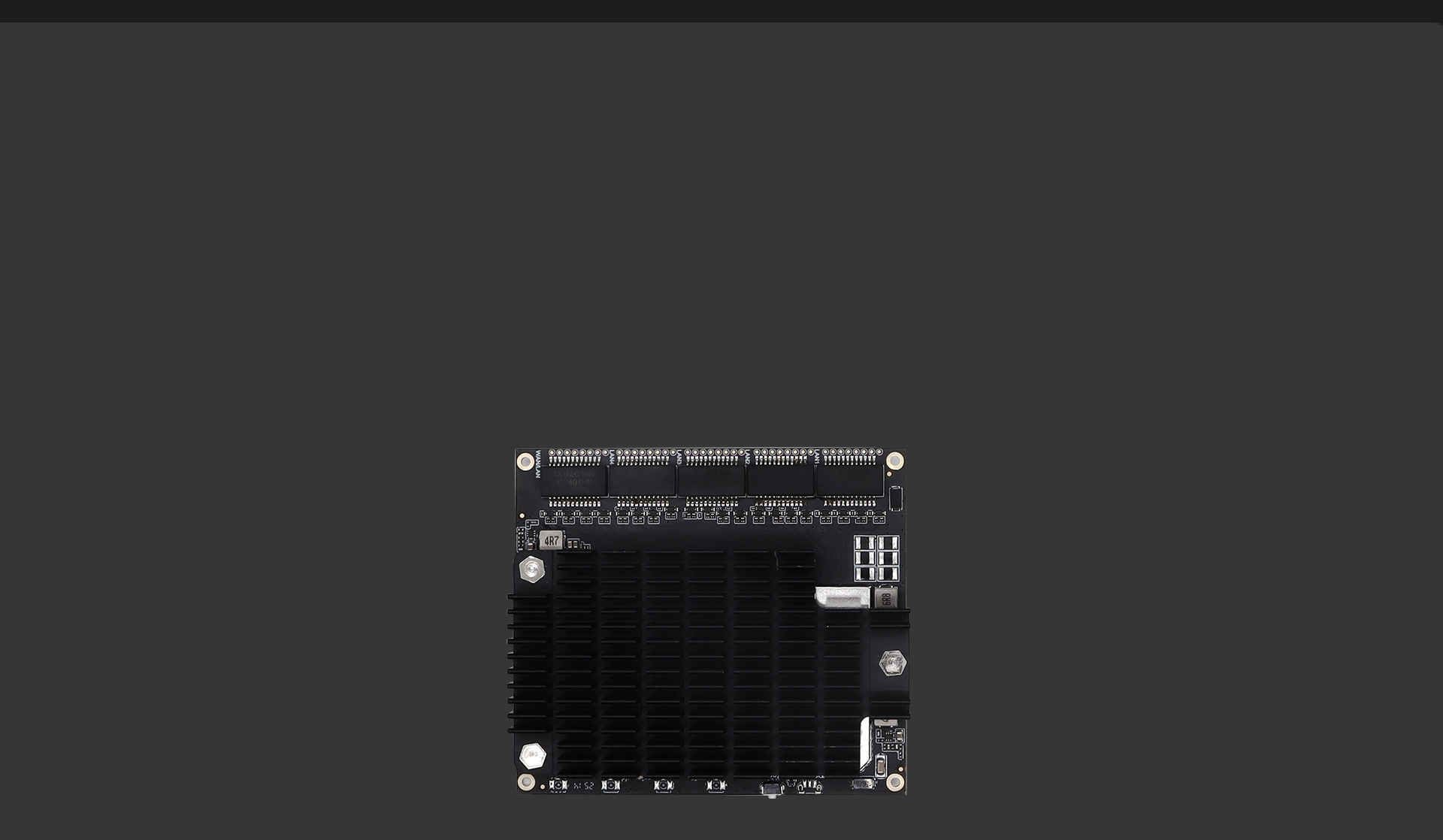

Hardware

Ports: 5 10/100/1000Mbps Ethernet lockable ports

Input Voltage: 12~60V (support positive and negative protection)

PoE Power: IEEE 802.3 af/at compliant, 4* PSE power supply, single port power supply up to 30W, the whole PoE output power up to 120W, 1* PD Powered: 48~57V

Button: Reset button

Antenna: 2* Dual-band combined WiFi (IPEX generation)

Dimensions: 89x79mm

Static Electricity: 8KV

Surge: 2KV

Wireless

Wireless standards: 1201 Mbps (5 GHz, 11ax) + 574 Mbps (2.4 GHz, 11ax), compatible with IEEE802.11B/G/N/AC/AX Wi-Fi wireless standards

Frequency: 2.4 GHz and 5 GHz

Transmit Power: FCC:<28 dBm (2.4GHz), <28 dBm (5GHz)

Signal Rate: 2.4GHz 574 Mbps, 5GHz 1201 Mbps

Reception Sensitivity:

5 GHz: 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm

2.4 GHz: 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm

Wireless Security: 64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise

Software

Working Mode: Router, Access Point, Client, Repeater, Bridge, WISP client Router

WAN Type: Dynamic IP/Static IP/PPPoE

Management: Local Management

DHCP: DHCP client list

NAT Forwarding: Port forwarding, DMZ

Firewall Security: IP and MAC Address Binding

Protocol: IPv4

Others

Environmental:

Operating Temperature: -30℃ ~ 75℃

Storage Temperature: -30℃ ~ 75℃

Operating Humidity: 10%RH ~90%RH(non-condensing)

Storage Humidity: 5%RH ~ 90%RH(non-condensing)
