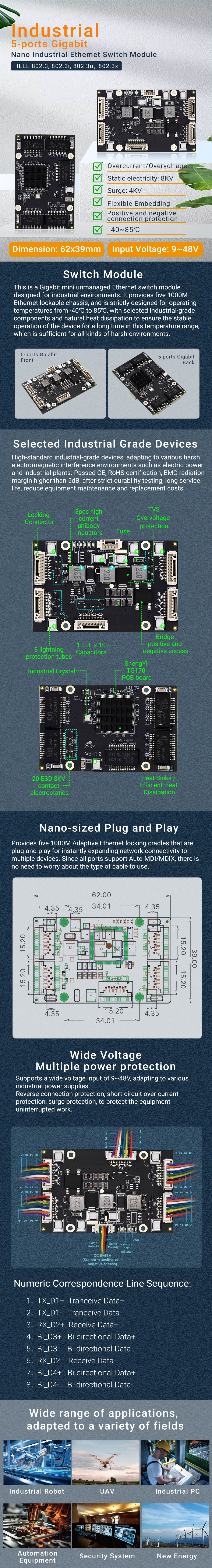

Nano Ethemet Switch Module

IEEE 802.3, 802.3i, 802.3u，802.3x

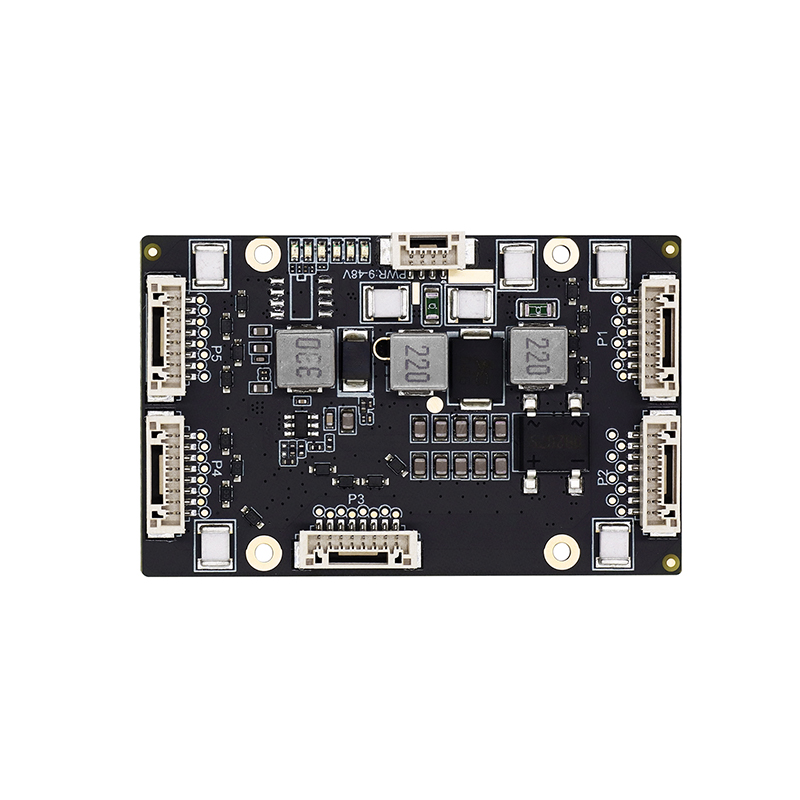

This is a Gigabit mini unmanaged Ethernet switch module designed for industrial environments. It provides five 1000M Ethernet lockable chassis, and is strictly designed for operating temperatures from -30℃ to 75℃, with selected industrial-grade components and natural heat dissipation to ensure the stable operation of the device for a long time in this temperature range, which is sufficient for all kinds of harsh environments.

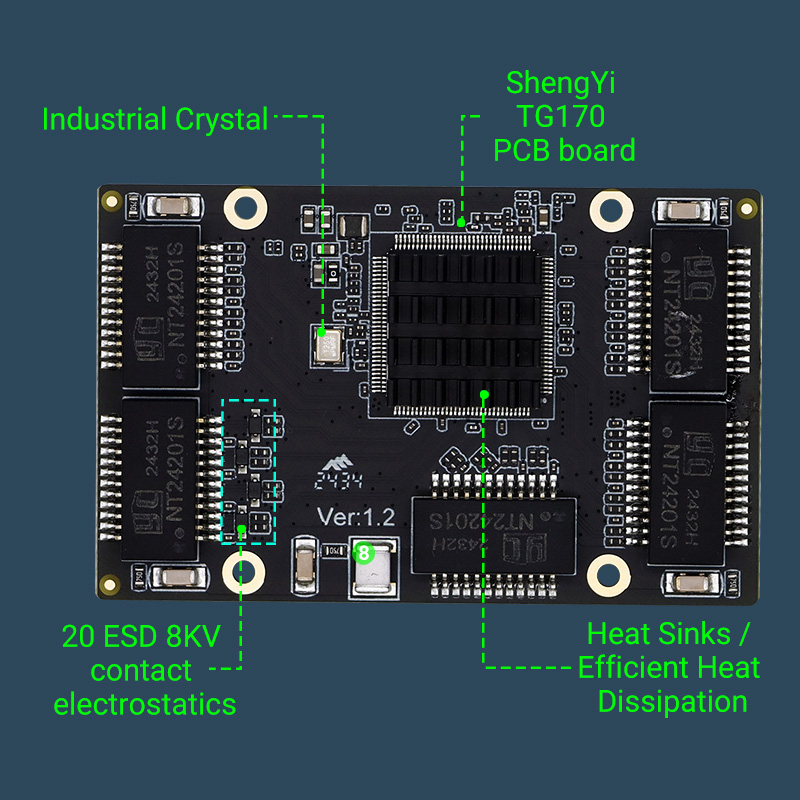

High-standard industrial-grade devices, adapting to various harsh electromagnetic interference environments such as electric power and industrial plants. Passed CE, RoHS certification, EMC radiation margin higher than 5dB, after strict durability testing, long service life, reduce equipment maintenance and replacement costs.

Provides five 1000M Adaptive Ethernet locking cradles that are plug-and-play for instantly expanding network connectivity to multiple devices. Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Supports a wide voltage input of 9~48V, adapting to various industrial power supplies.

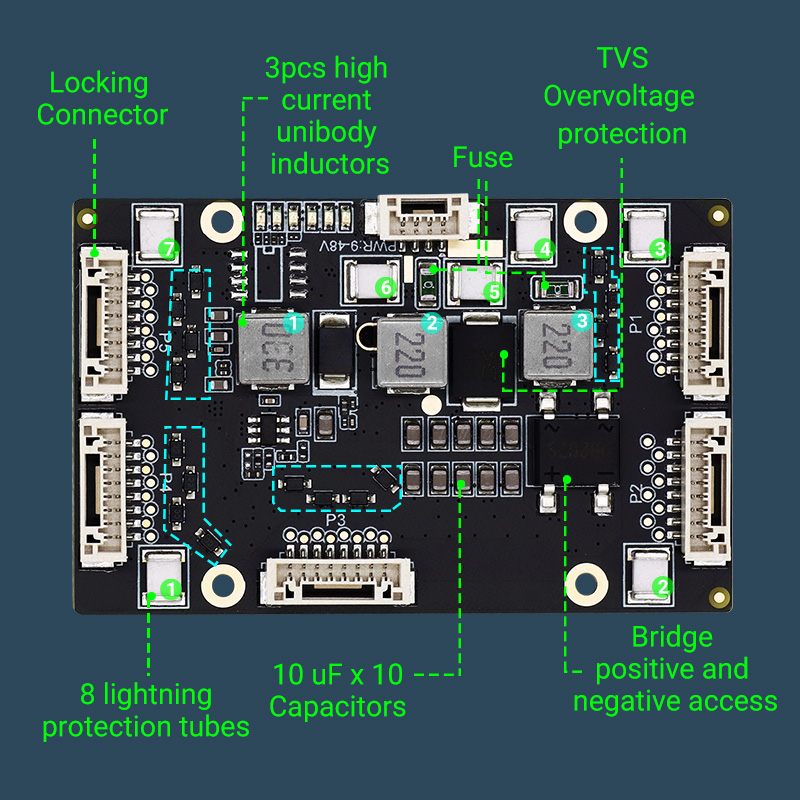

Reverse connection protection, short-circuit over-current protection, surge protection, to protect the equipment uninterrupted work.

Numeric Correspondence Line Sequence:

1、TX_D1+  Tranceive Data+

2、TX_D1-   Tranceive Data-

3、RX_D2+  Receive Data+

4、BI_D3+   Bi-directional Data+

5、BI_D3-    Bi-directional Data-

6、RX_D2-   Receive Data-

7、BI_D4+   Bi-directional Data+

8、BI_D4-    Bi-directional Data-
