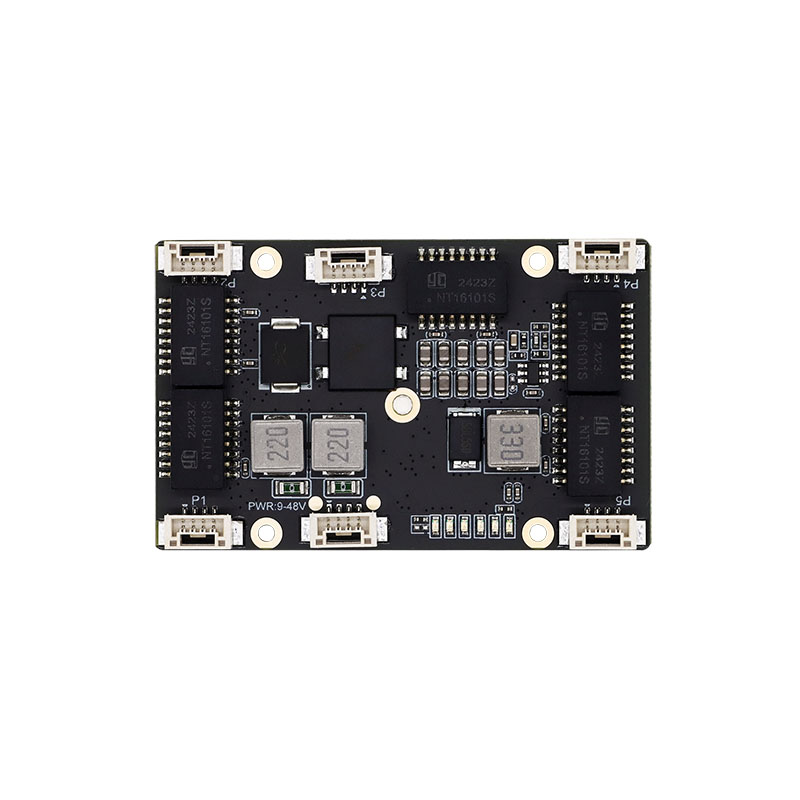

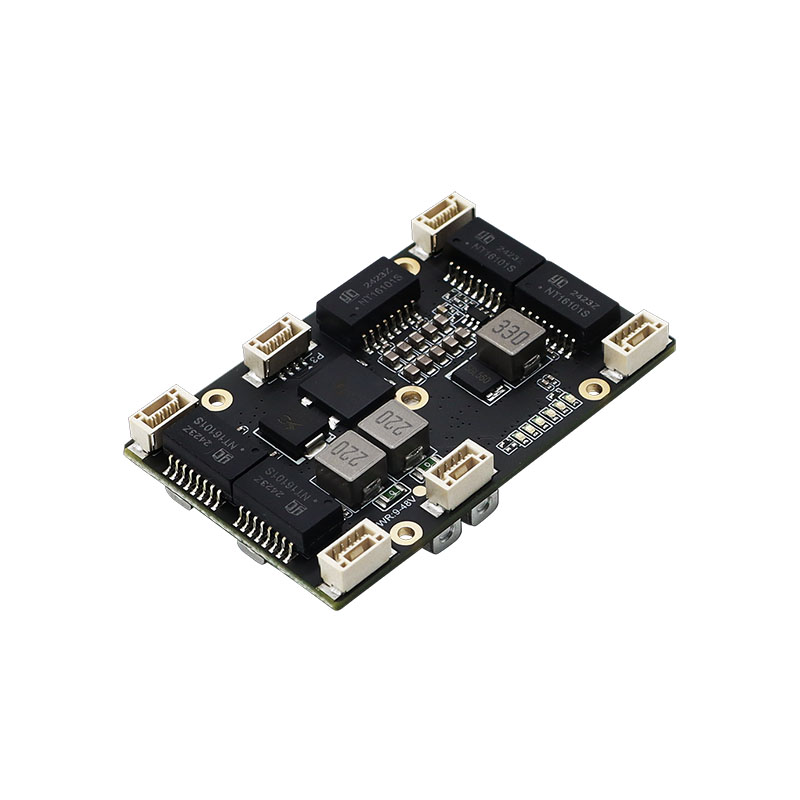

YN-IES10501-V2 5 10/100Mbps Nano Industrial Ethernet Switch Module

· Plug and play

· IEEEE 802.3x Flow Control Provides Reliable Data Transmission

· Compact and super mini design

· Fanless design ensures quiet operation

· Automatic: MDI/MDIX Eliminates Need for Crossover Cables

· Auto-negotiation: guarantees maximum speed on each port

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

· Lightning surge machine static full protection; static support 8KV, surge differential mode 2KV, common mode 4KV

· Power supply support positive and negative access protection

· Provides five 10/100M adaptive ethernet locking socket

· Industrial-grade operating temperature: -30℃~75℃

· Support reverse protection, short circuit overcurrent protection, and surge protection, to ensure uninterrupted work of the device

· High EMC protection level, can work in various harsh environments

· Small size（62 ×39×12.6mm）,better adapted to industrial environments

Services

Overview
Specifications

Industrial 5 10/100Mbps

Nano Ethemet Switch Module

IEEE 802.3, 802.3i, 802.3u，802.3x

Switch Module

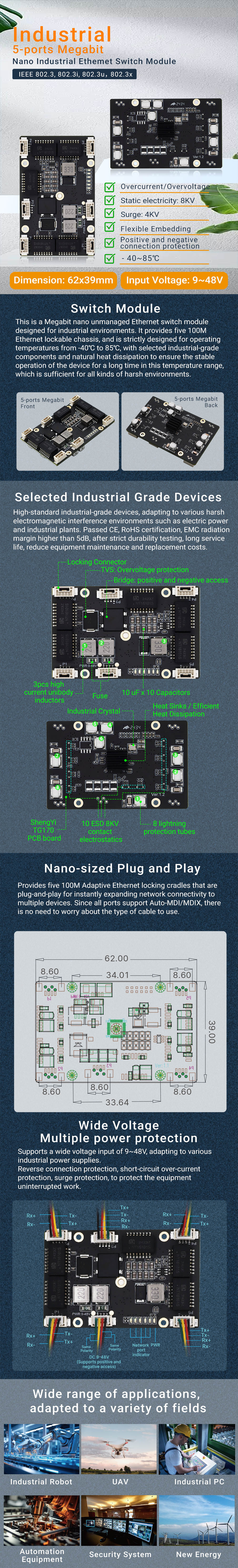

This is a Megabit nano unmanaged Ethernet switch module designed for industrial environments. It provides five 100M Ethernet lockable chassis, and is strictly designed for operating temperatures from -30℃ to 75℃, with selected industrial-grade components and natural heat dissipation to ensure the stable operation of the device for a long time in this temperature range, which is sufficient for all kinds of harsh environments.

Selected Industrial Grade Devices

High-standard industrial-grade devices, adapting to various harsh electromagnetic interference environments such as electric power and industrial plants. Passed CE, RoHS certification, EMC radiation margin higher than 5dB, after strict durability testing, long service life, reduce equipment maintenance and replacement costs.

Nano-sized Plug and Play

Provides five 100M Adaptive Ethernet locking cradles that are plug-and-play for instantly expanding network connectivity to multiple devices. Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.
