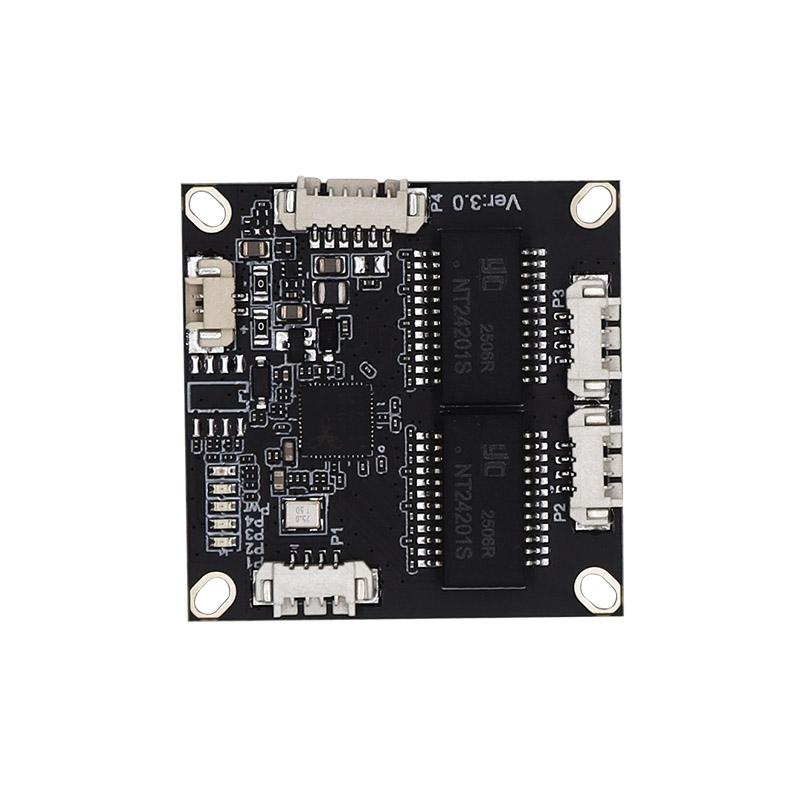

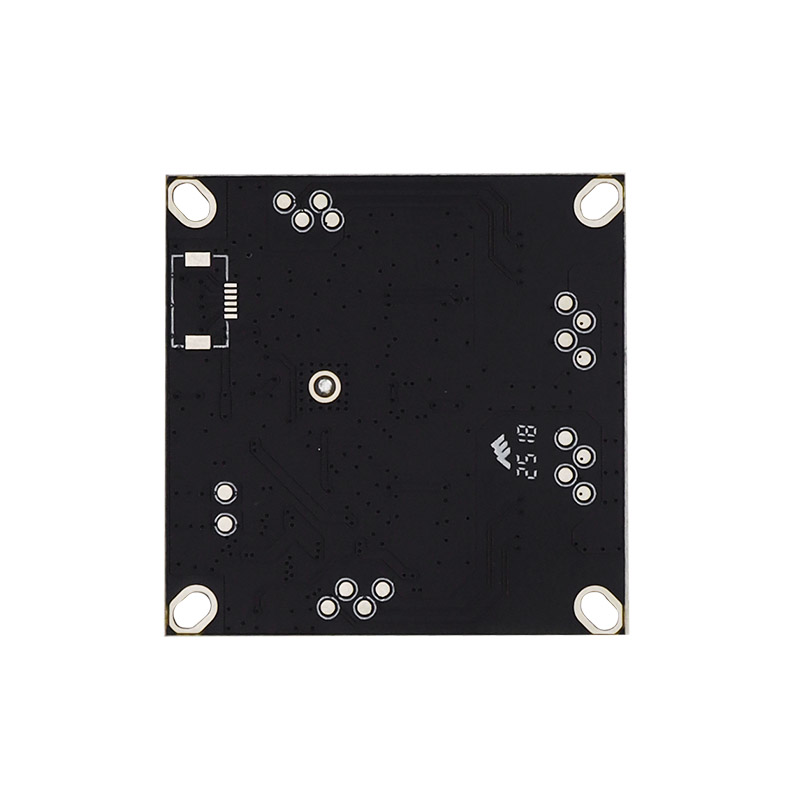

YN-S10402 4-port 100Gbps Mini Switch Module

· Plug and play, no configuration needed.

· IEEE 802.3x flow control provides reliable data transfer.

· Compact form and desktop design.

· Fanless design ensures quiet operation.

· Auto-MDI/MDIX eliminates the need for crossover cables.

· Auto-negotiation guarantees the highest speed for each port.

· Comply with IEEE 802.3、IEEE 802.3u、IEEE 802.3ab standards.

· Full duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard.

· Each port supports auto-negotiation and automatically adjusts the transmission mode and transmission rate.

· Support MAC address self-learning.

· Support full speed forwarding communication without blocking.

Services

  • Overview
  • Specifications

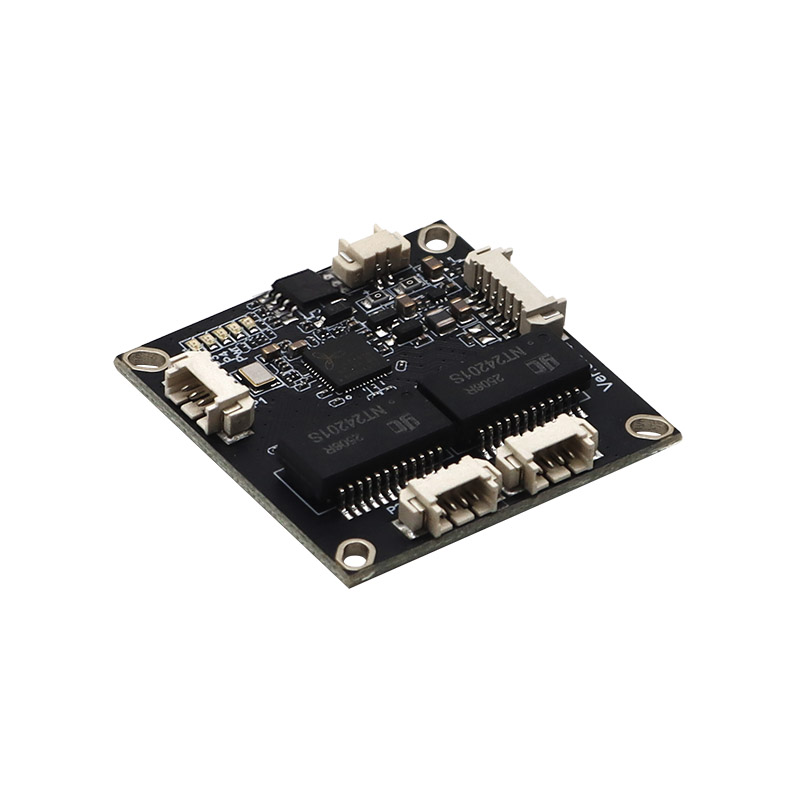

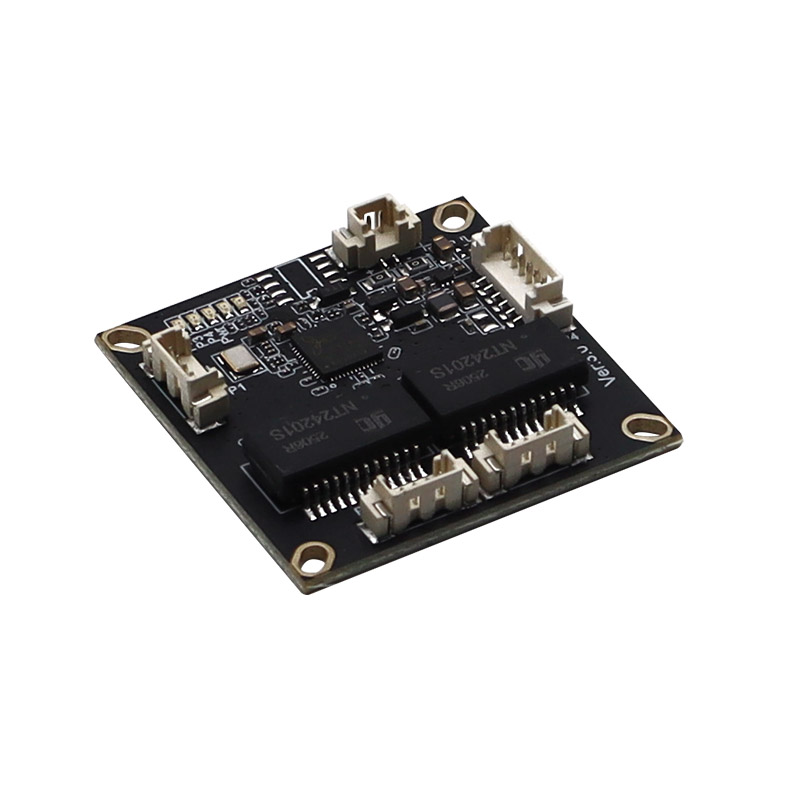

10402图1


4-port 100Gbps

Mini Switch Module

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab















YN-S10402 is a 4-port 100Mbps mini unmanaged Ethernet switch module, with a 38X38 mini design size, providing the easiest and most affordable way to expand your wired network.


It's reliable, easy to use, and with this plug-and-play switch, you can extend your network connection to multiple devices.


Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.


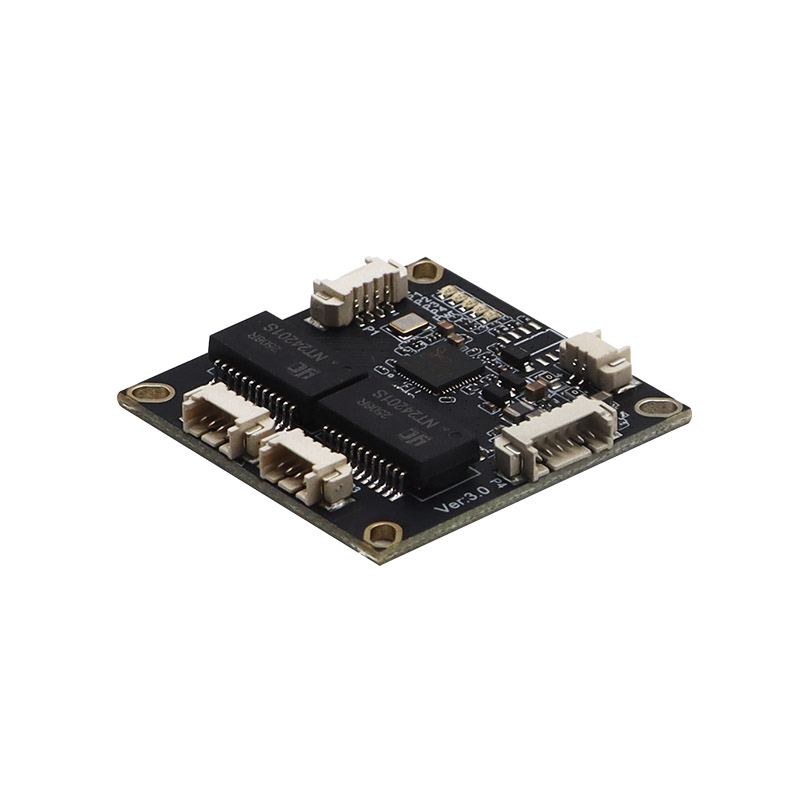

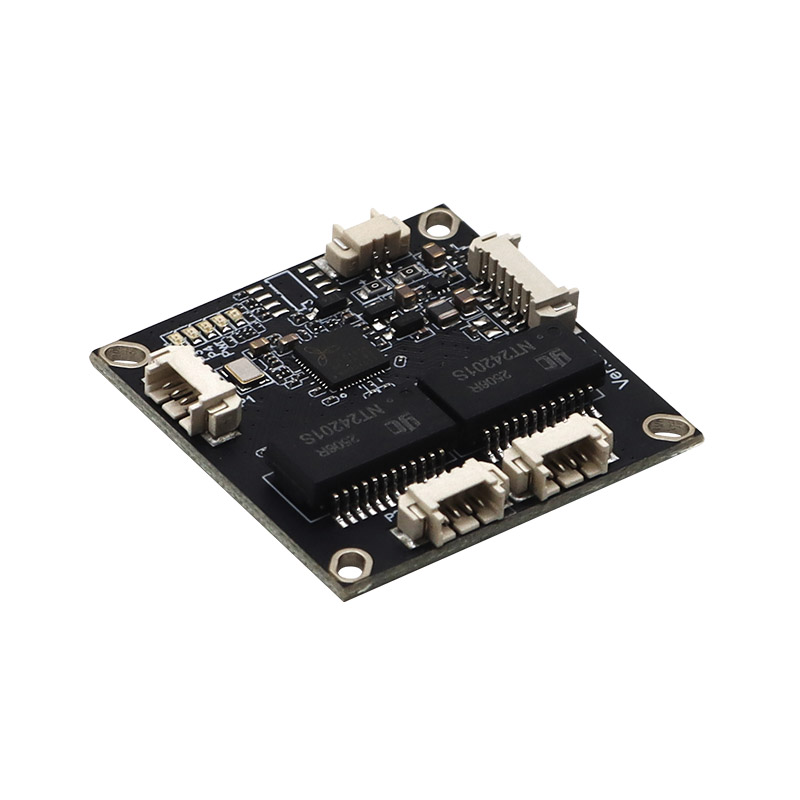

10402图2

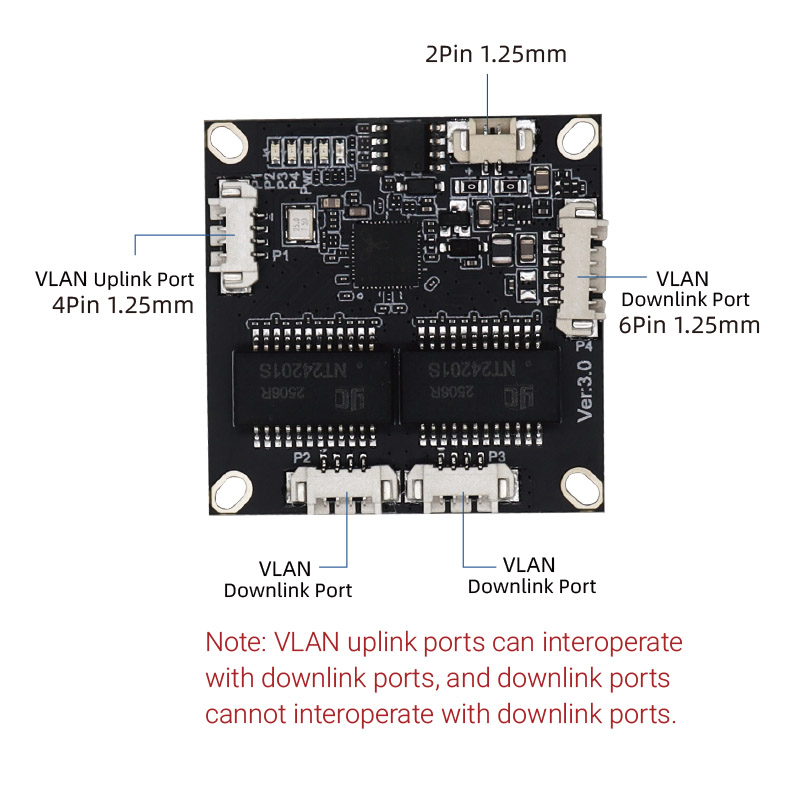

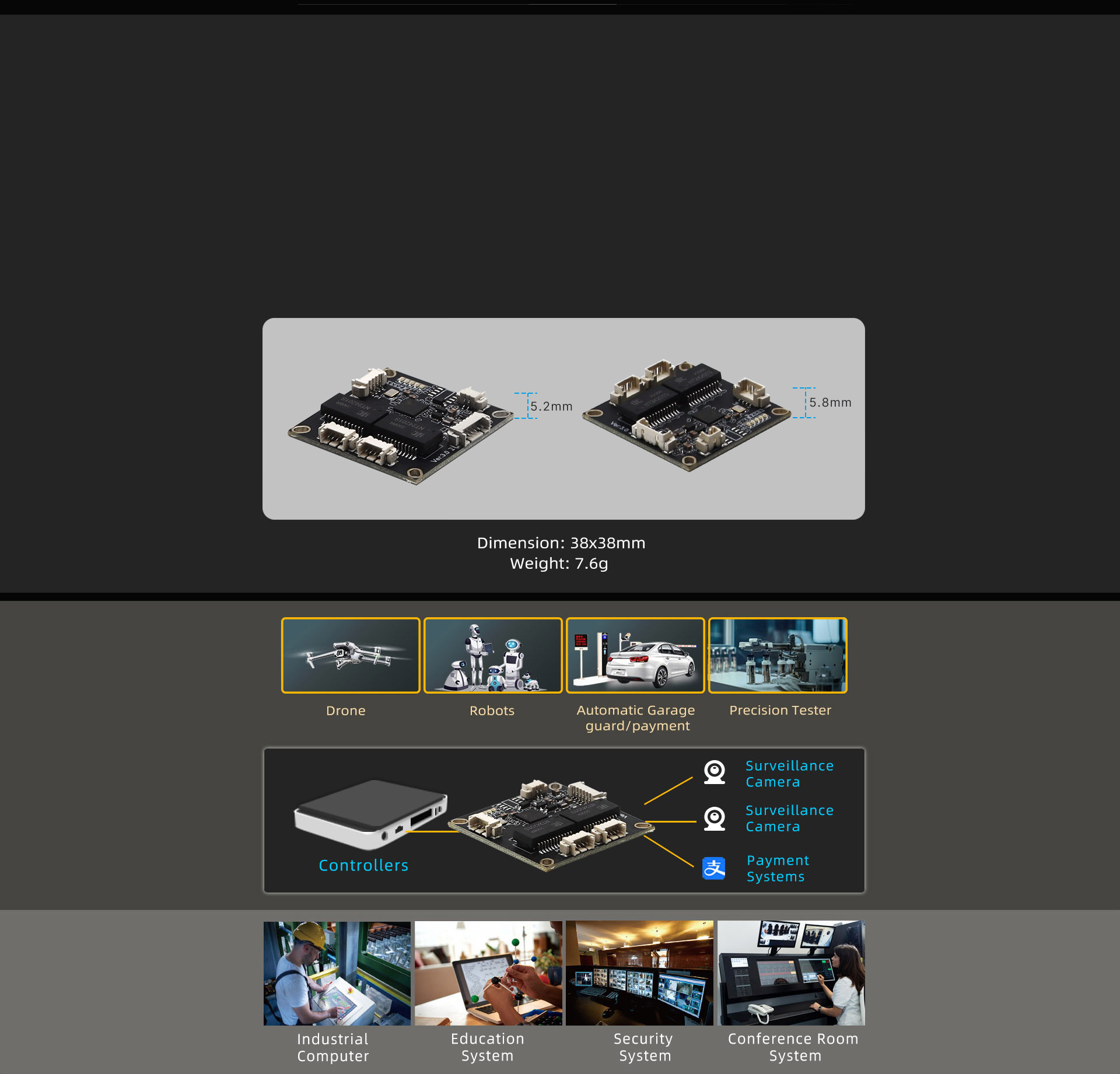

Dimension

10402图3

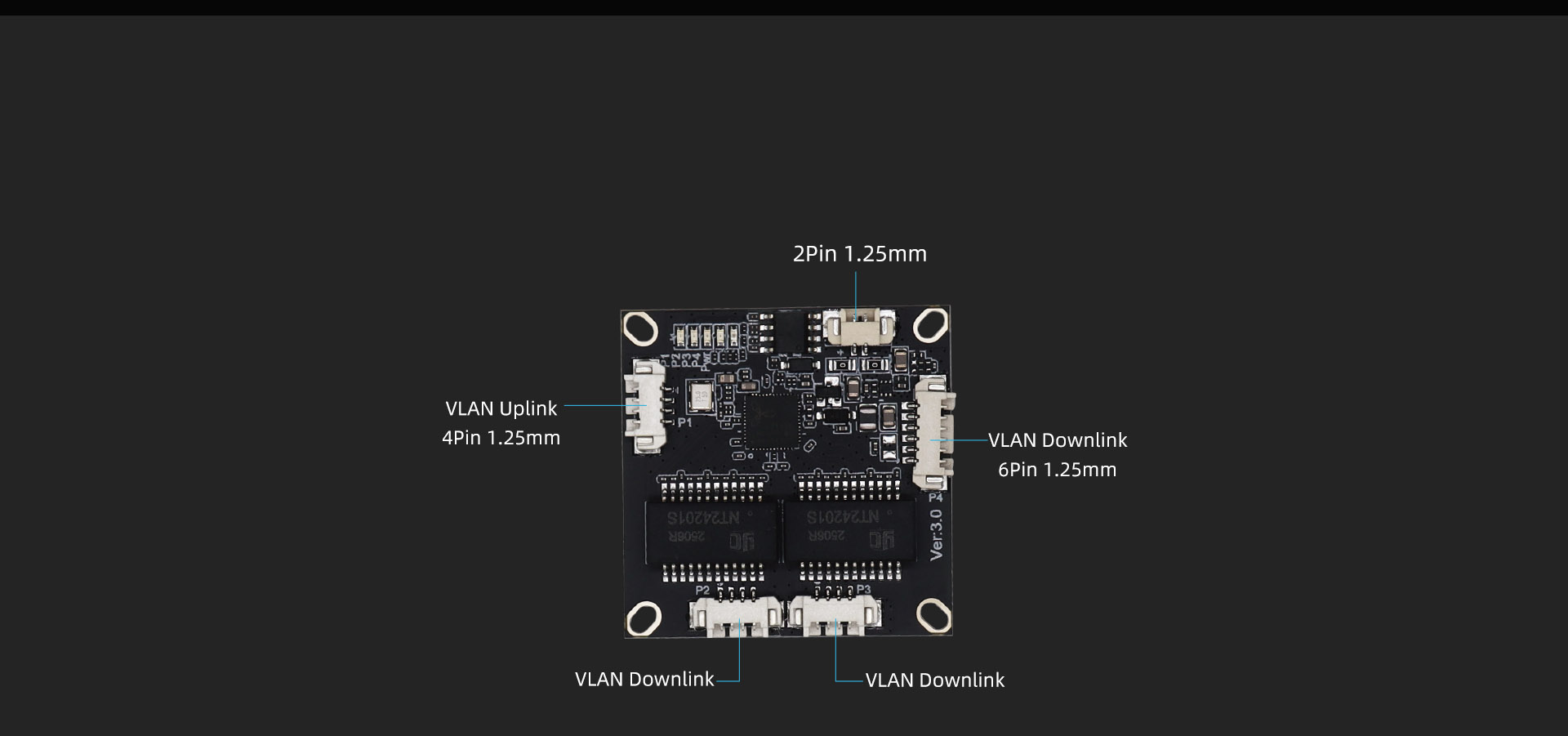

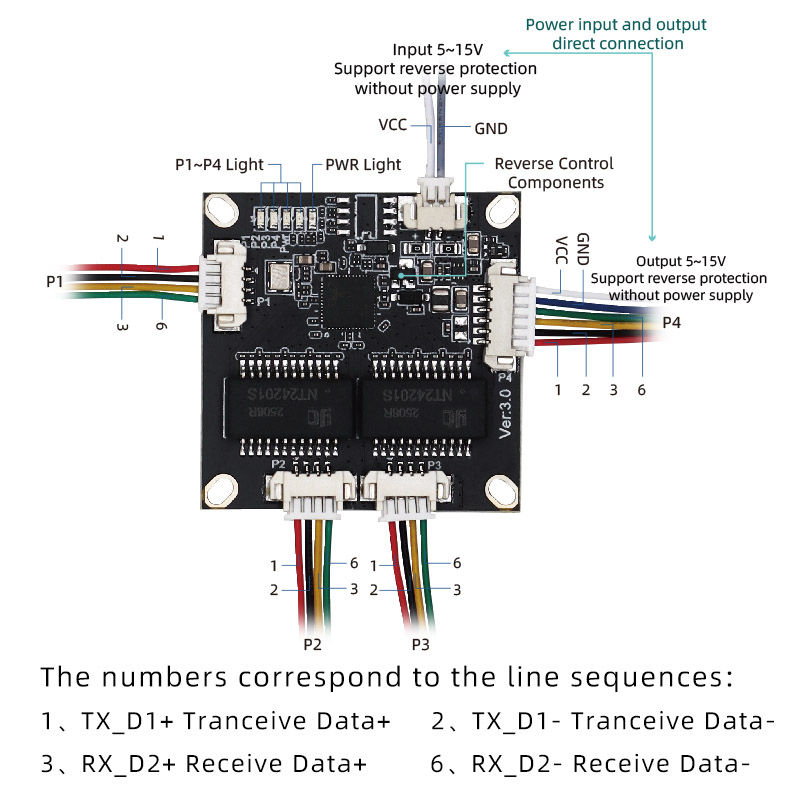

Interface Definitions
















The numbers correspond to the line sequence:

1、TX_D1+  Tranceive Data+

2、TX_D1-   Tranceive Data-

3、RX_D2+  Receive Data+

6、RX_D2-   Receive Data-

YN-S10402 4-port 100Gbps Mini Switch Module

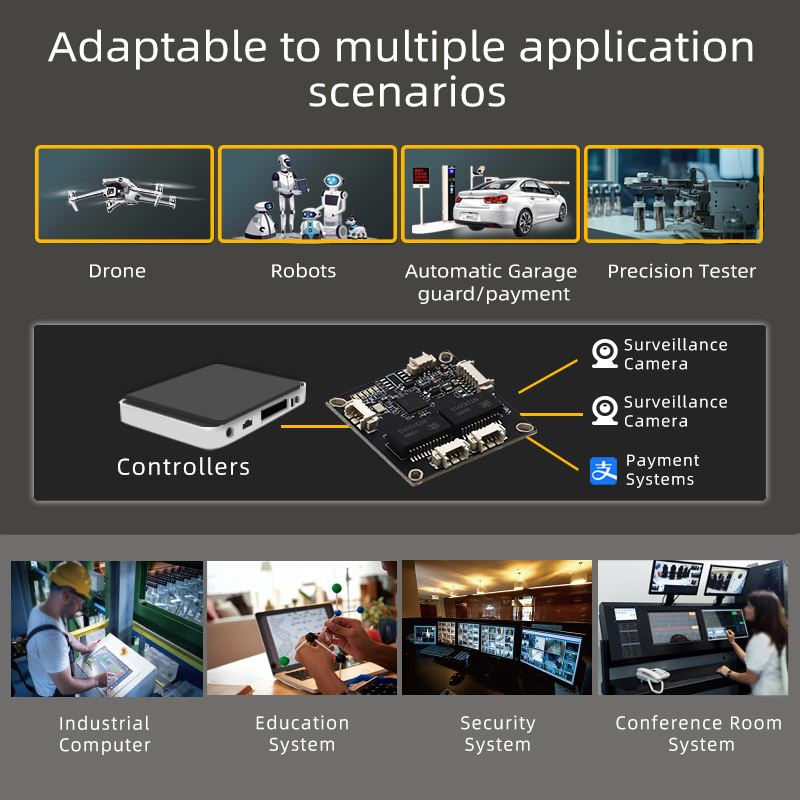

Areas of Application

Such as: Conference room systems, education system, security system, industrial computer, IP Camera, robotics, gateway, etc.

Wireless IP Camera
Education System
Conference System
Industrial Computer
Robot Data Upload
Security System

Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Forwarding Mode: Store and forward

Interface: 4 10/100Mbps RJ45 ports

Switching Capacity: 1.0Gbps

Packet Forwarding Rate: 0.7Mpps

Jumbo Frame: 2KB

Advanced Features: Green Technology; 802.3x Flow Control

Max Power Consumption: 1.65W

Max Heat Dissipation: 5.627Btu/hr

LEDs: Power, Link/Act (indicator per port built into RJ45 port)

MAC Address: 2K

Input voltage: 5~15V

Input method: Pin type 2P terminal block, spacing 1.25MM

No load: 0.9W@12VDC

Load: 2W@VDC

Working environment: Working temperature: -5～55℃

                                      Storage temperature: -40～85℃

                                      Humidity: 10%~95 %( no condensation)

Weight: 12g

Size: 38×38×7mm（length X width X height）
