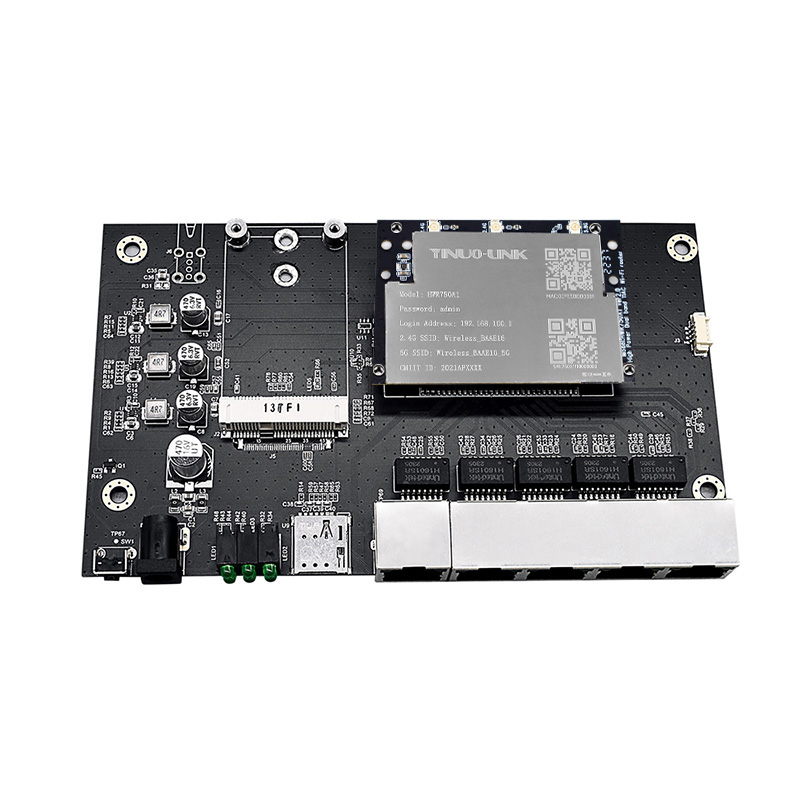

HWR750A1 Wireless Routing Module

· Conform to IEEE802.11b/g/n/ac standard.

· 3T3R mode, supporting PHY data rate of 750Mbps.

· DDR2 memory, up to 1024Mb.

· Flash up to 1Gb.

· PA up to 500mW.

· USB Media Sharing: Plug in your external drives to quickly share photos, movies, or music across your home network.

· USB Wireless Printing: The USB port allows you to easily share printers on a wireless network.

· Security System: WEP64/128，TKIP、AES、WPA、WPA2、WAPI.

· Support AP/client/relay/bridge/router/WISP mode.

· Wireless complies with FCC/CE/ROHS certification standards.

Services

Overview
Specifications

HWR750A1 Wireless Routing Module

HWR750A1 module is compliant with 802 port a/b/g/n/ac Wi-Fi solution, it integrates a dual-core MIPSCPU (650MHz), 5-port 10/100 Fast Ethernet switch, USB2.0, UART. It can be widely used in wireless HD receiver box, wireless network camera, gateway, UAV, HD map transmission, intelligent robot, power wireless cruise, etc.

The module integrates a 2.4GHz 2X2 MINO WLAN chip and a 5GHz 1X1 WLAN chip with 500 mW high power WiFi6 FEM. It supports 20Mhz up to 144Mbps and 40MHz up to 300Mbps channels and supports 5GHz up to 433Mbps for 80MHz channels.

The module supports AP mode, client mode, relay, bridge router and WISP modes.

Product Size Drawing

Interface Definition Diagram

HWR750A1 Wireless Routing Module

Various fields of application

Such as: Wireless HD receiver box, wireless network camera, gateway, UAV, HD map transmission, HD aerial photography, intelligent robot, power wireless cruise, etc.
