YN-IES10501 5-port 100Mbps Industrial Mini Switch Module

· Plug and play, no configuration needed.

· IEEE 802.3x flow control provides reliable data transfer.

· Compact form and desktop design.

· Fanless design ensures quiet operation.

· Auto-MDI/MDIX eliminates the need for crossover cables.

· Auto-negotiation guarantees the highest speed for each port.

· Comply with IEEE 802.3、IEEE 802.3u、IEEE 802.3ab standards.

· Full duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard.

· Lightning and surge machine with static protection; static support 8KV, surge differential mode 2KV, common mode 4KV.

· Support power positive and negative access protection.

Services

Overview
Specifications

5-port 100Mbps

Industrial Mini Switch Module

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

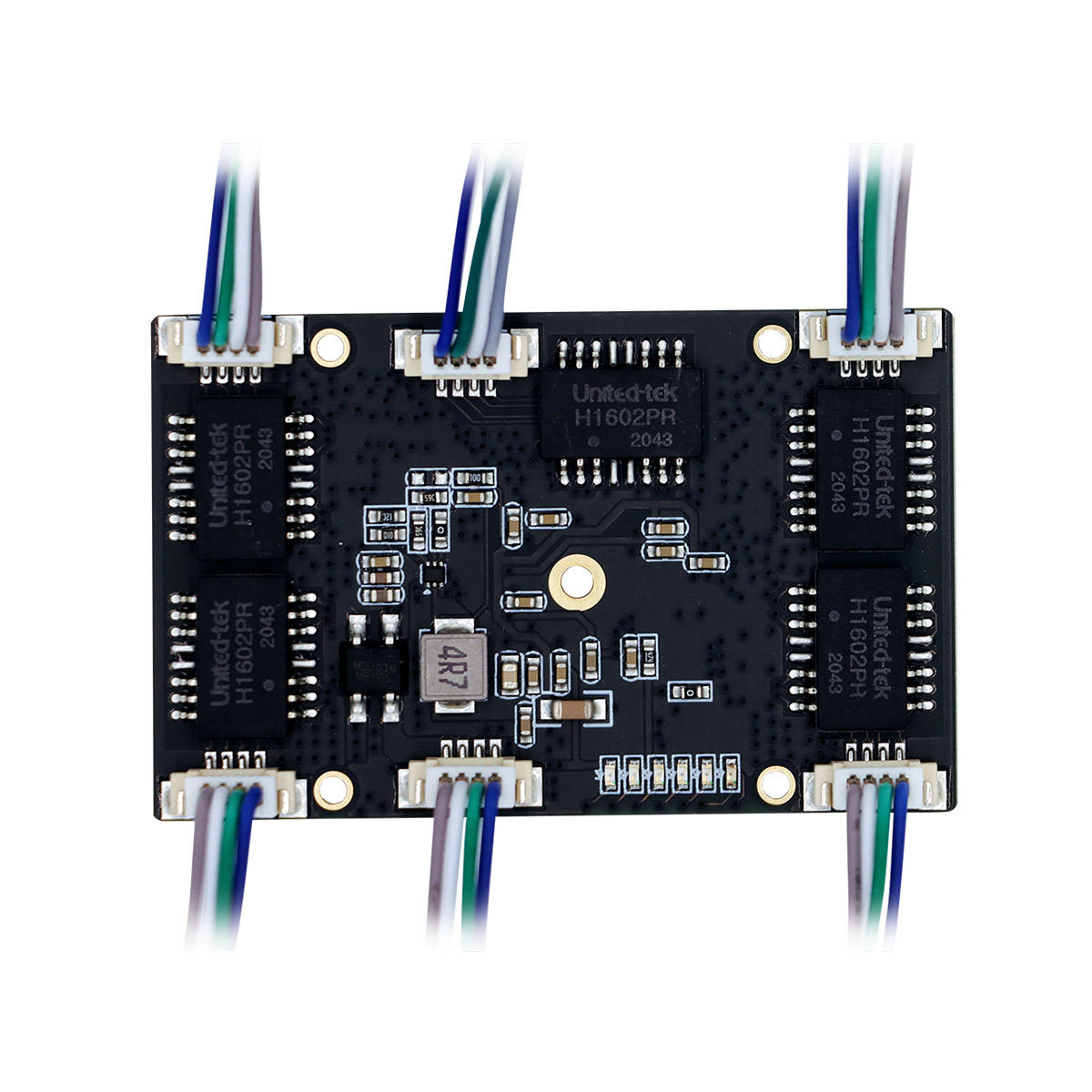

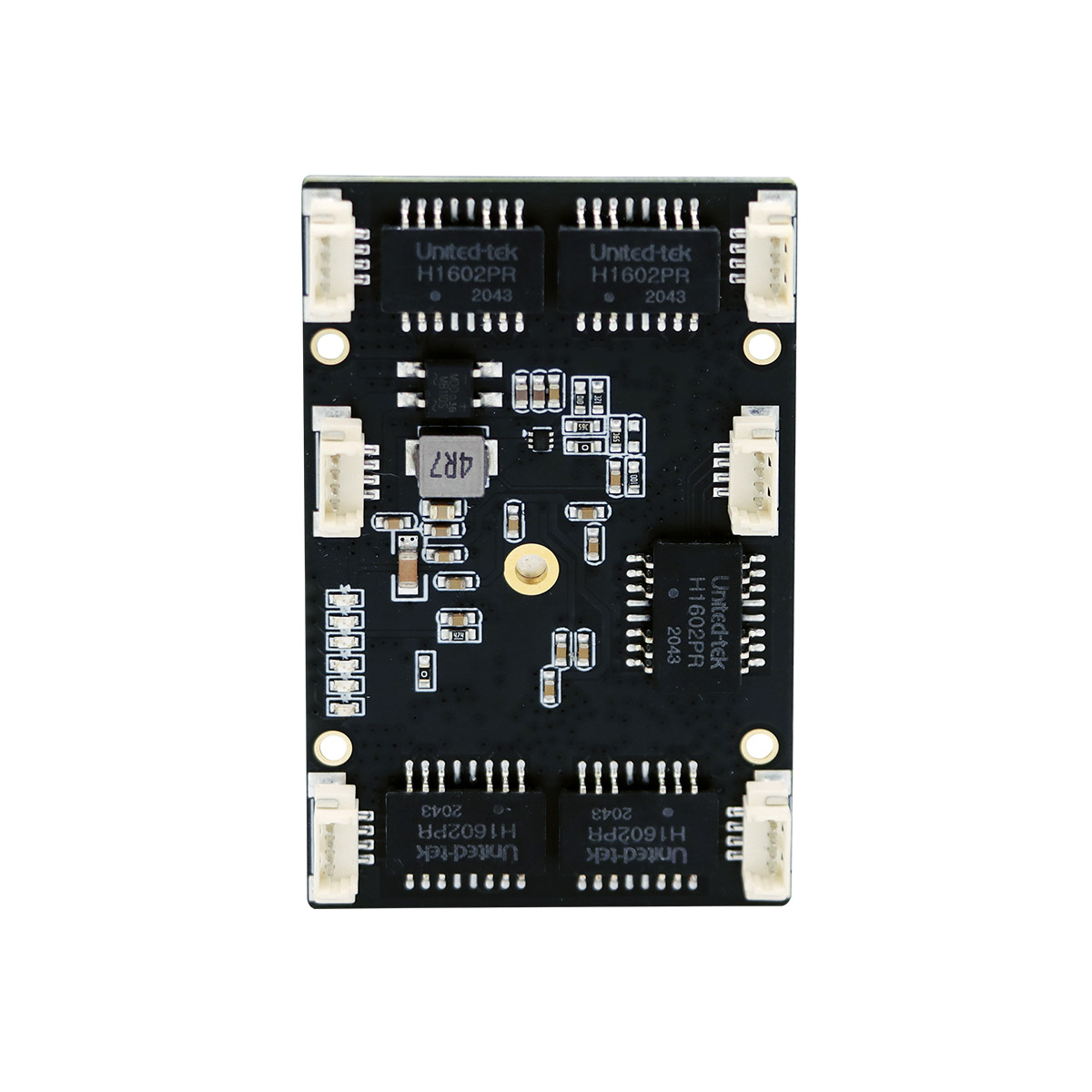

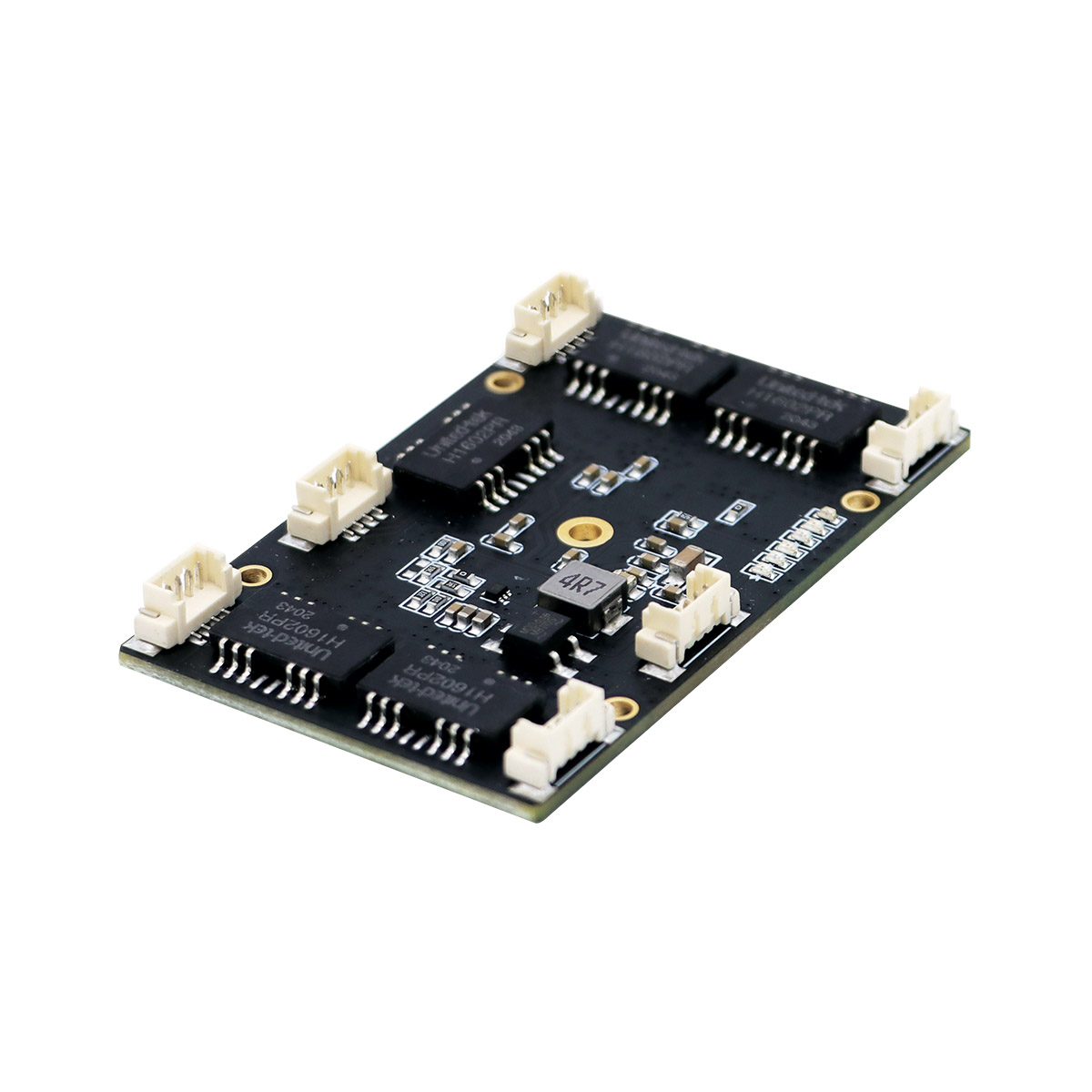

YN-IES10501 is a 5-port 100GbE mini unmanaged industrial Ethernet switch module independently developed by Ino Era. It has a compact design, easy to install, and is a low-power, wide-temperature design, which has passed the strict tests in line with industry standards.

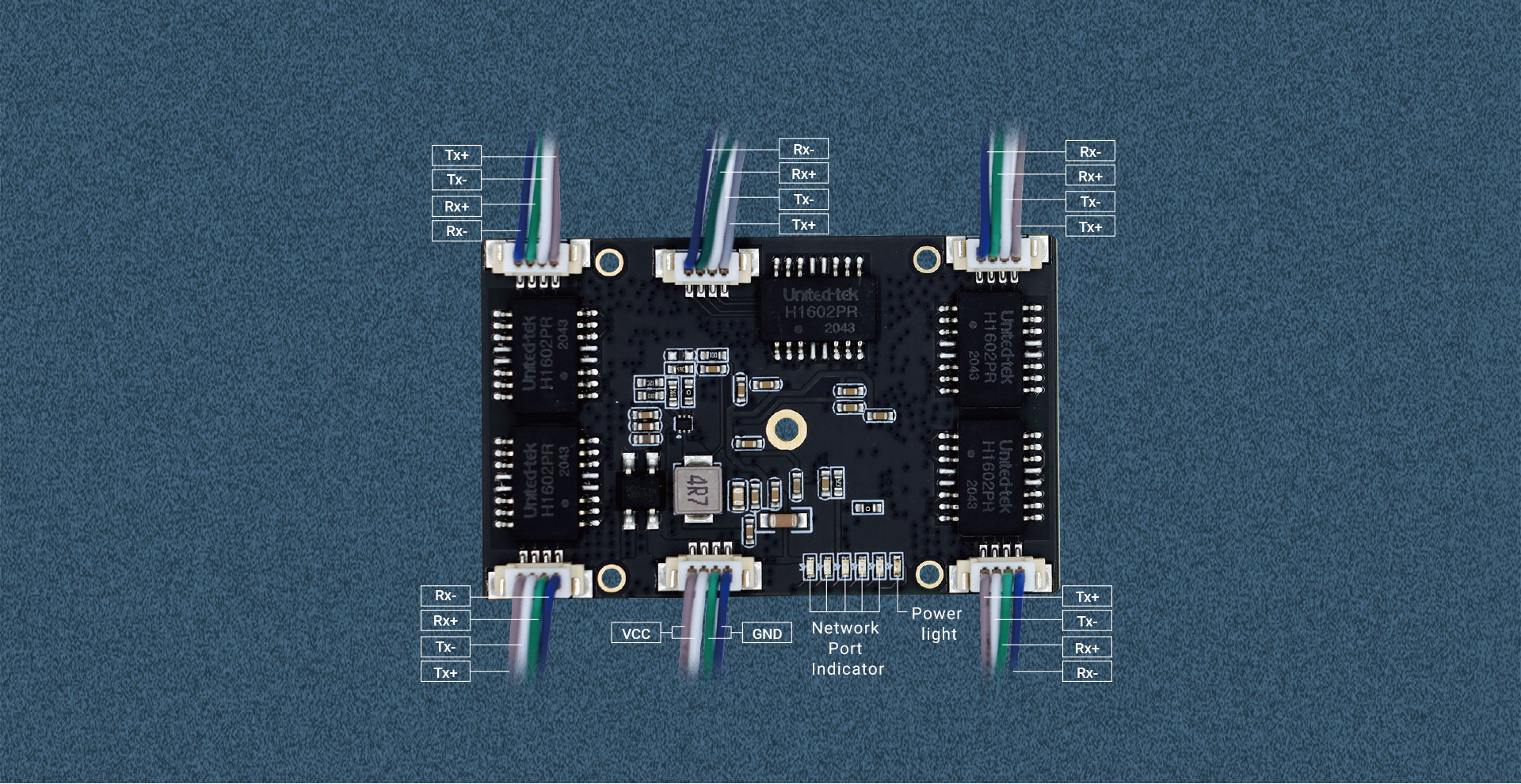

Provides five 10/100M adaptive Ethernet ports, provides DC 7-15V input positive and negative protection to prevent burning the product, and the power supply network port supports electrostatic surge protection level.

Adaptable to industrial field environments with stringent EMC requirements, there is no need to worry about the type of cable to be used as all ports support Auto-MDI/MDIX.
