Explore the Y10 PCle Adapter for Your Wireless Network Needs

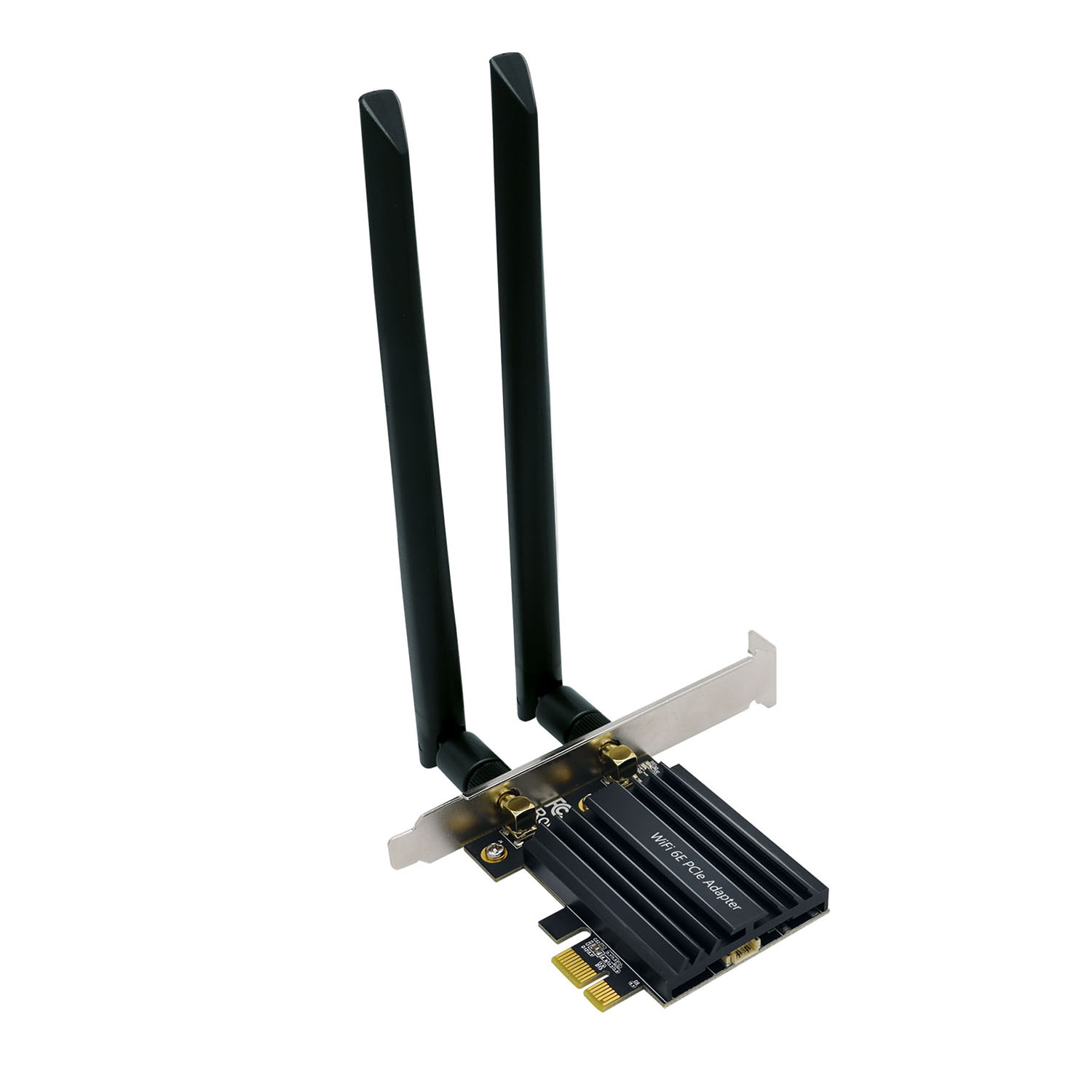

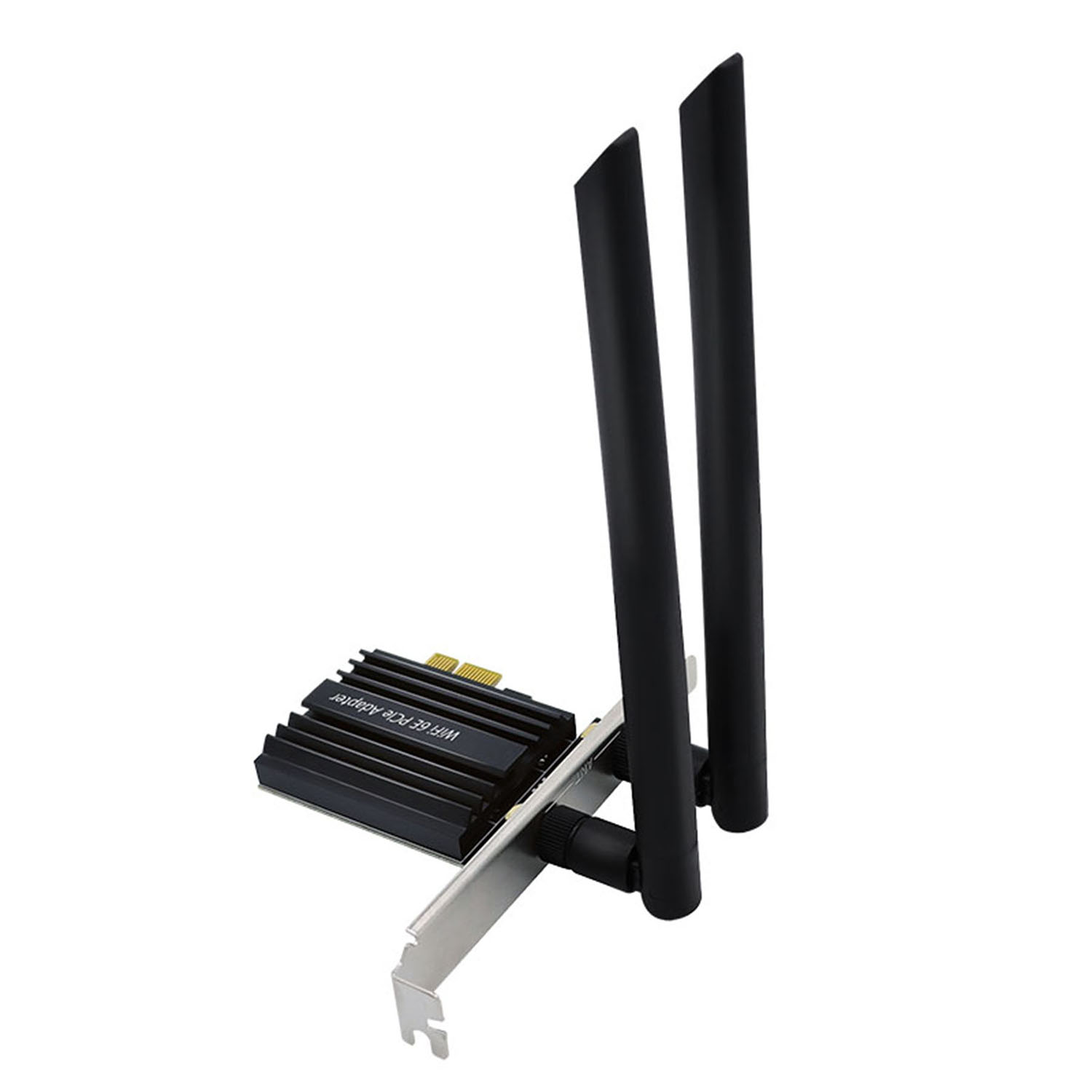

Y10 AX5400 Triple Band WiFi 6E PCle Adapter

Get A Quote

Y10 AX5400 Triple Band WiFi 6E PCle Adapter

· Unparalleled Tri-Band Speed: Boost your overall speeds up to 2402Mbps(6GHz)+2402Mbps(5GHz)+574Mbps(2.4GHz).

· WiFi 6E Standard: Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds.

· Reliable Connections: Intel®Wi-Fi6E chipset brings faster, clearer Wi-Fi.

· Wider Signal Coverage: Multi-directional antennas with a magnetized base are designed for optimal signal reception.

· Bluetooth 5.3: The latest Bluetooth technology achieves faster speeds and broader coverage.

· Improved Security: The latest security enhancement, WPA3, provides enhanced protection in personal password safety.

· Reliably Engineered: The specialized heatsink and gold plating improve stability and performance even at high CPU temps.

· Backward Compatibility: Full support for 802.11ax/ac/a/b/g/n standards.

Services

Overview
Specifications

Empower your PC with next-

generation Wi-Fi6E technology

2402Mbps（6GHz）+2402Mbps（5GHz）

+574Mbps（2.4GHz）

MODEL：Y10

Smooth streaming media for an

immersive experience

Equipped with the 6 GHz band for your PC, the Y10 utilises the full potential of the Wi-Fi 6E router to enjoy uninterrupted streaming on the Wi-Fi 6E device's exclusive 6 GHz band. 160 MHz bandwidth provides powerful continuous WiFi, achieving speeds up to 3 times faster than standard AC WiFi, allowing your PC to reach peak performance.

Superior Wi-Fi Reception

Equipped with 1024-QAM and MU-MIMO technology, delivers faster and clearer Wi-Fi to take your PC's Wi-Fi reception to the next level and fully achieve the potential of your WiFi 6E router.

Fluid experience

The Y10 adopt the Intel® WiFi 6E chip to reduce latency by 75%,

providing fast game response and uninterrupted live video chat and

seamless streaming..

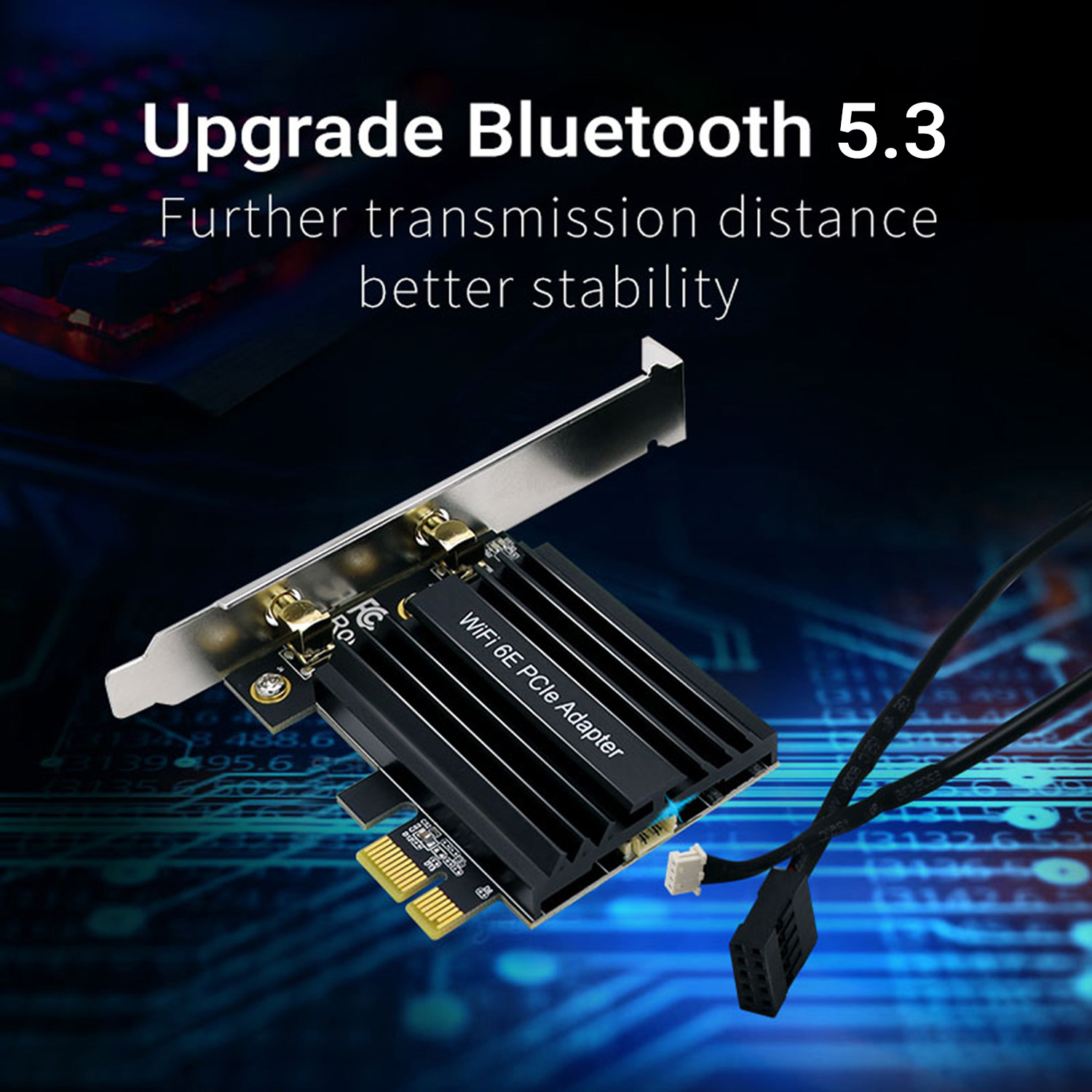

Bluetooth 5.3 Technology

Compatible with the latest Bluetooth 5.3 Technology, achieving 2X faster speed and 4X broader coverage than Bluetooth 4.2 to connect as more devices as you want and enjoy the smoother experience than ever.

Fine Crafting for Reliability

Built with a specialized heatsink crafted to improve stability and reliability even in hot environments. Careful attention to every detail, such as gold plating on every contactor to resist oxidation, delivers a superior network experience.

Top security protection

WPA3 is the latest network security standard, which provides personal password security in more secure and personalized encryption, it protects your network from hackers and ensures a more reliable wireless connection when surfing the Internet and shopping online.

Easy to use
Insert the CD, find
the driver and follow
the instructions to
complete the
installation

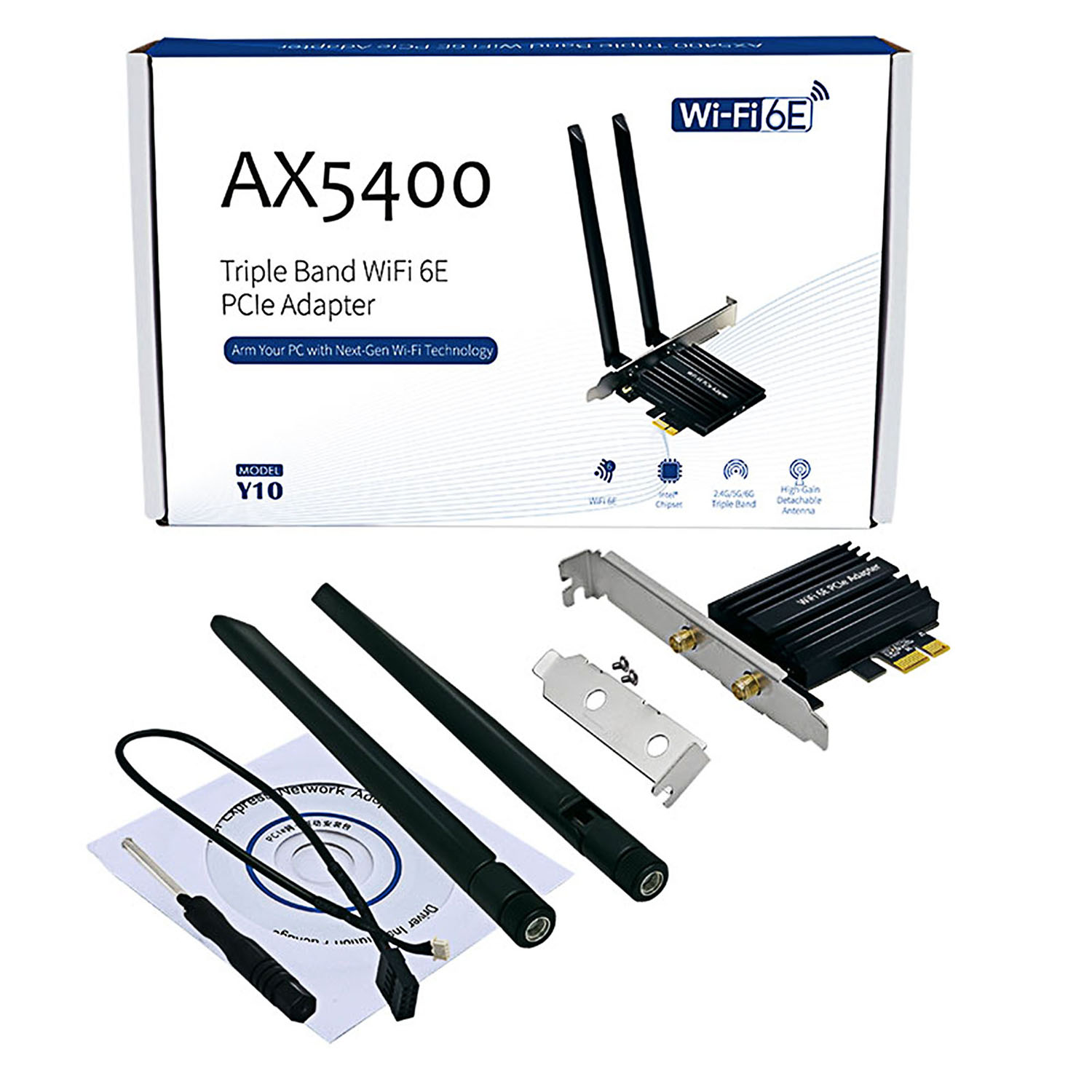

Low-Profile
Bracket
In addition to the
full-height bracket,
a low-profile bracket
is also provided

Operating
Systems
Support Windows
10, (32/64 bit),
Windows 11, Linux

Y10 AX5400 Triple Band WiFi 6E PCle Adapter

No Data

WLAN Features

Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/ac/n/a 6 GHz,

IEEE 802.11ax/n/g/b 2.4 GHz

Signal Rate:

5 GHz 6 GHz 2.4 GHz

11ax: 2402mbps(dynamic) 11ax: 2402mbps(dynamic) 11ax: 573 Mbps(dynamic)

11ac: 1733 Mbps(dynamic) 11ac: 1733 Mbps(dynamic) 11n: 300mbps(dynamic)

11n: 300mbps(dynamic) 11n: 300mbps(dynamic) 11g: 54mbps(dynamic)

11a: 54mbps(dynamic) 11a: 54mbps(dynamic) 11b: 11mbps(dynamic)

Transmit Power: 5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP)

6 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP)

2.4 GHz: 24dBm(FCC) / 20dBm(CE) (EIRP)

Wireless Modes: Infrastructure mode

Port: PCI Express x1/x4/x8

Wireless Security: 64/128-bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technique: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Bluetooth Function

Standards and Protocols: Bluetooth 5.3, Bluetooth 4.2, Bluetooth 4.0

Hardware

Chipset: Intel® Wi-Fi 6E Chipset

Antenna: Two dual-band 5db antennas

Product Dimesions: 120.8x74x48mm

Others

Certification: FCC, CE, SRRC, RoHS

System Requirements: Windows 10 (64-bit) only supports

Environment: Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
